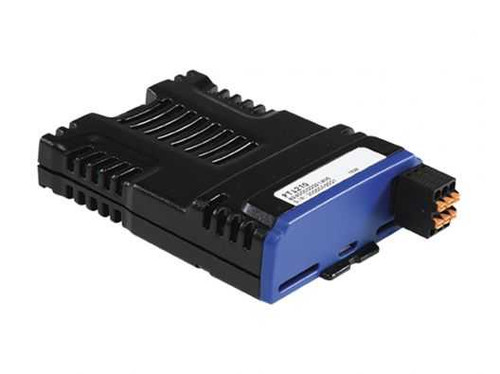

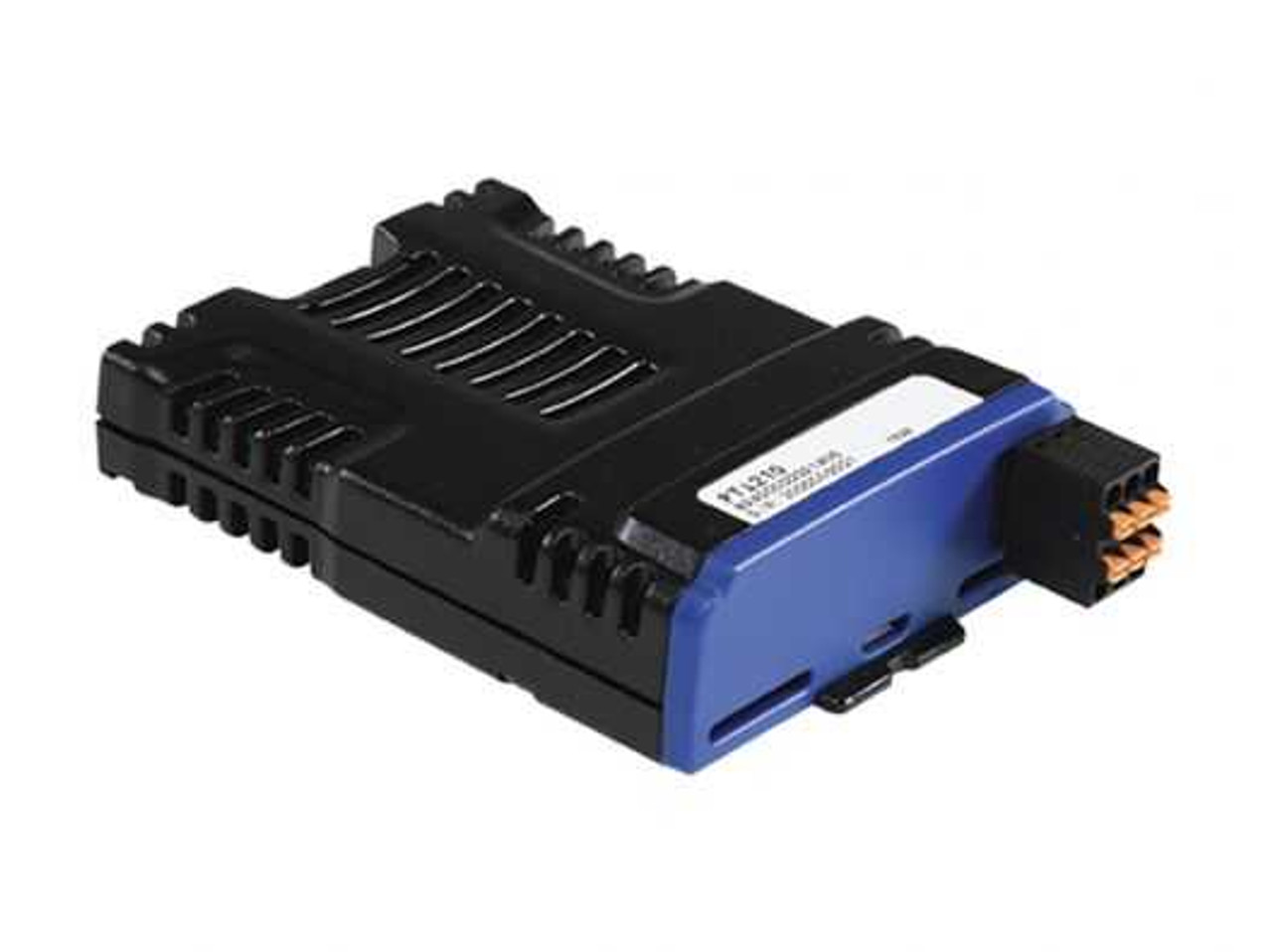

PTi210
Nidec Control Techniques PTi210
Easily configure your desired motion control profile in PowerTools Studio and upload it to your Digitax HD or Unidrive M700 servo drive via our snap-in PTi210 Integration module. Simple configuration and programming is accomplished through an easy-to-use graphical user interface (GUI) using:
- Fill-in-the-blank
- Point-and-click
- Drop-down menu selections
- Drag-and-drop parameters & I/O assignments
You also have instant access to all motion parameters through the project tree view.
Easy to Use - No specialized skills required to setup and execute motion - no coding!
Reliable and Economical - less labor and components to integrate motion
Flexible - one setup process for a wide range of motion applications
PTi210 is a cost effective way to provide simple, fast and effective motion control solutions with PowerTools Studio configuration software.
- 5 high speed digital I/O points (3 inputs & 2 outputs) in addition to the on-board drive I/O
- 1.5 axis synchronized encoder following with an optional encoder system integration module
- Rapid integration for applications such as:
| > Conveyor Synchronization > Parts Alignment > Rotary Knife > Electronic Gearing > Phase Synchronization > Slip Compensation > Feed to Sensor/Torque > Point-To-Point Positioning > Thermoforming |
> Flying Cutoff > Product Spacing > Traverse Winding > Labeling and Printing > Random Infeed Control > Web Control > Multi-Lane Merge Control > Registration Control ........and many more! |

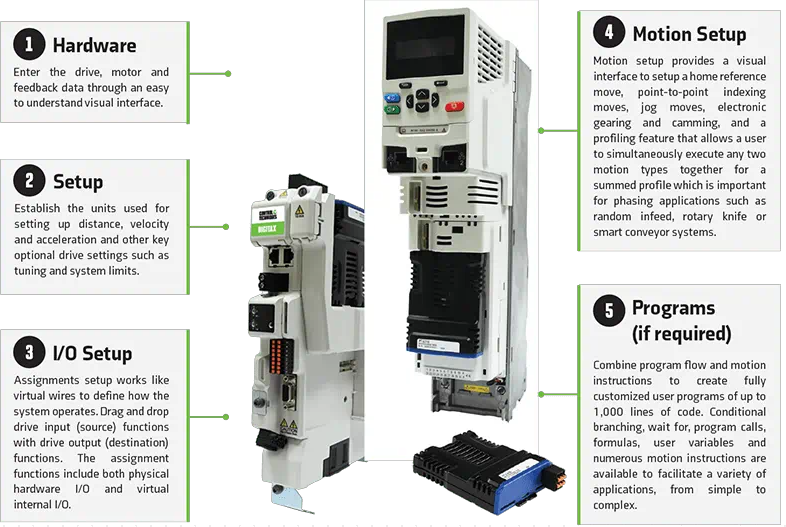

PowerTools Studio and the five steps to Motion Control
Standard industrial product 5 Year Warranty - Includes exchange or factory repair at our option on lower power products, and on-site repair (parts & on-site time only) on higher power products as defined below. The warranty period starts from the date of shipment from Mechanical Electrical Systems (MES), unless otherwise specified. MES will provide ground shipment to the customer. The customer is responsible for returning the defective product to MES. Products that have not been used in accordance with the product manual, or that have been damaged due to unauthorized repairs will void the product warranty.
