VFD Troubleshooting Guide
VFD Problems can originate in:
- The VFD itself
- Motor
- Motor cable
- Incoming power
- Mechanical load
- Control wiring
- PLC/HMI
- Encoder/feedback system
- VFD programming
- Environmental conditions

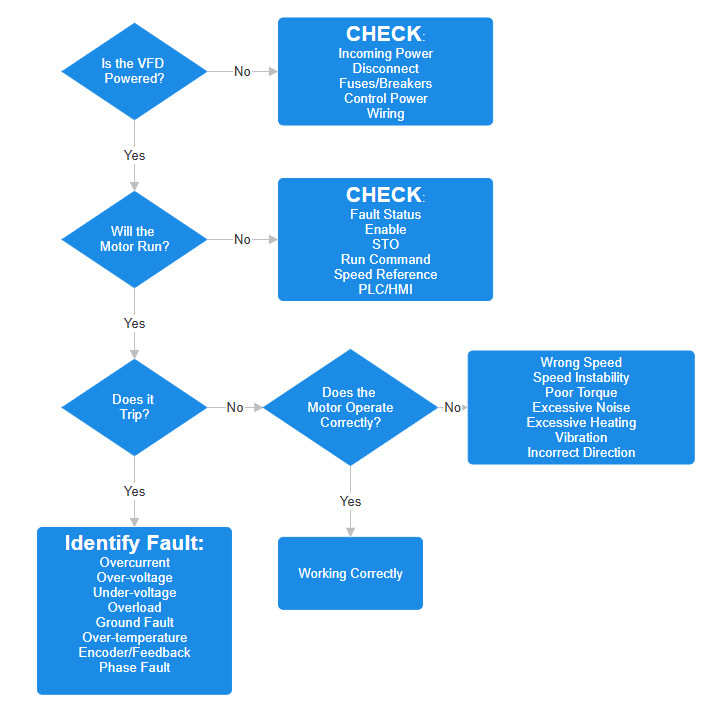

The fastest way to troubleshoot a VFD is to identify exactly when the problem occurs, record the fault code, and determine whether the problem is electrical, mechanical, programming-related, or related to the motor/load.
| Problem | Common Causes | Troubleshooting |
|---|---|---|
| VFD won't start | Run command, enable, STO, reference | Diagnose control path |
| Overcurrent | Acceleration, load, motor, wiring | Check current/load |
| Overvoltage | Deceleration, regeneration | Check braking |
| Undervoltage | Supply sag, transformer, wiring | Check incoming power |
| Overload | Excessive load, sizing, cooling | Check motor/load |
| Ground fault | Motor, cable, insulation | Isolate motor circuit |
| Overheating | Cooling, ambient, load | Check thermal conditions |
| Motor won't accelerate | Load, ramp, current limit | Check acceleration demand |
| Motor runs too fast | Reference/scaling | Check speed command |
| Motor runs too slow | Reference/load/current limit | Check actual speed |
| Motor runs backwards | Phase/feedback/configuration | Verify direction |
| Encoder fault | Wiring, feedback, noise | Check encoder system |
| Speed fluctuates | Feedback/noise/tuning | Trend speed/current |
| Motor vibrates | Mechanical/control | Separate mechanical/control causes |
| Motor overheats | Load, low speed, motor cooling | Check motor duty |
| VFD trips randomly | Power/noise/thermal/load | Analyze fault history |
VFD Won't Start
Diagnostic sequence:
- Is the drive powered?
- Is there an active fault?
- Is the drive enabled?
- Is STO active?
- Is a run command present?
- Is the correct command source selected?
- Is the speed reference greater than zero?
- Is an external interlock preventing operation?
- Is the PLC sending the command?
- Is the motor connected correctly?
VFD Overcurrent
This article explains:
- What overcurrent means
- When it usually occurs
- Common causes
- How to diagnose it
- What information to record
Why Does My VFD Trip on Overcurrent? Causes and Solutions
