Open Loop Drive with Optional Communications
50/60Hz 230VAC Single Phase Input or 230VAC 3 Phase Input, 230VAC 3 Phase Output
0.33 hp – 200 hp (0.25 kW – 132 kW) Normal Duty
0.33 hp – 150 hp (0.25 kW – 110 kW) Heavy Duty
115 V | 208 - 240 V | 380 - 480 V
Commander variable speed drives have established the standard of excellence in motor control since 1983 when Control Techniques launched the first world commercial vector drive. Since then, Commander has undergone several successful enhancements, each time bringing new technology and innovations to the world of automation.

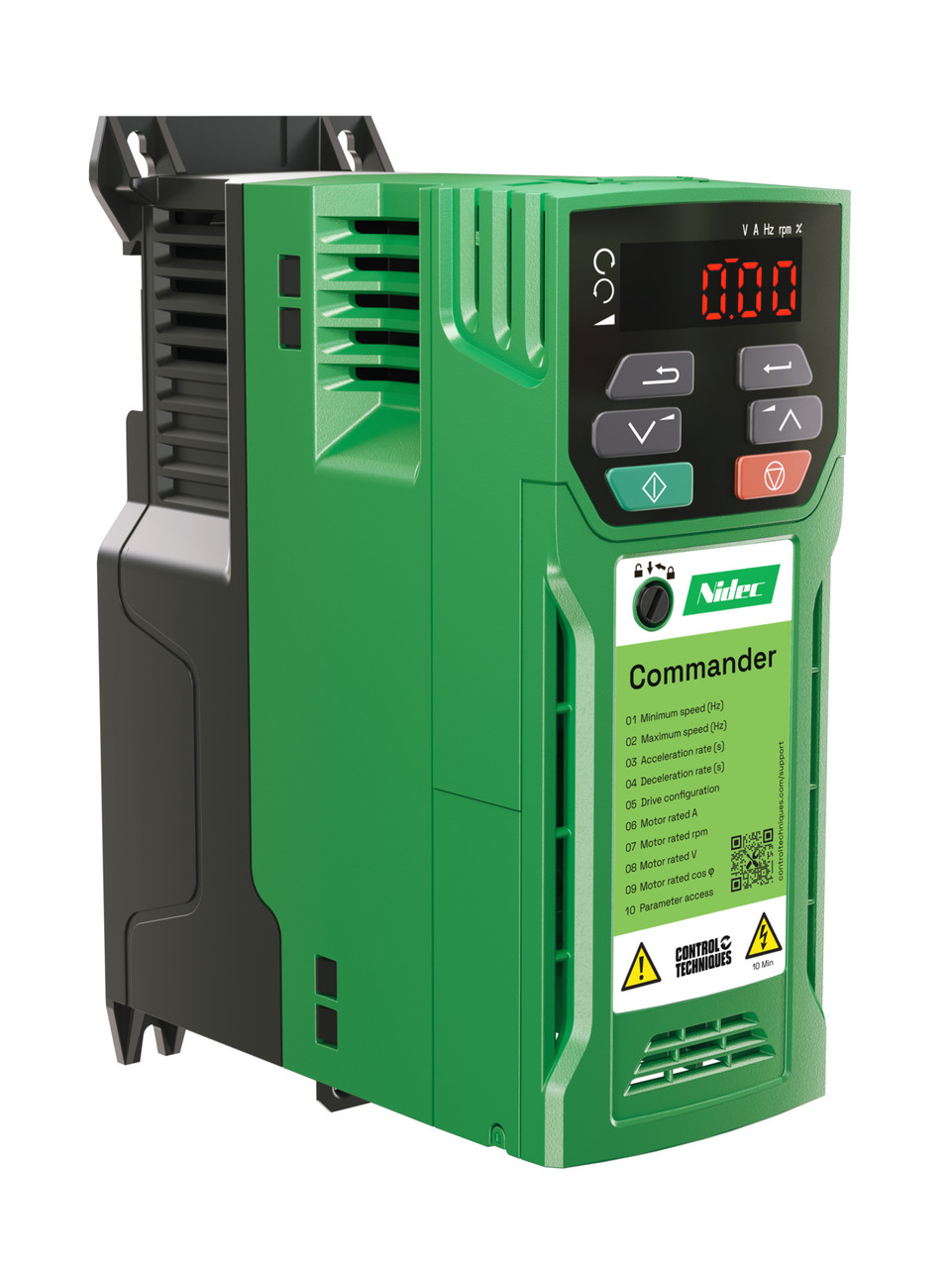

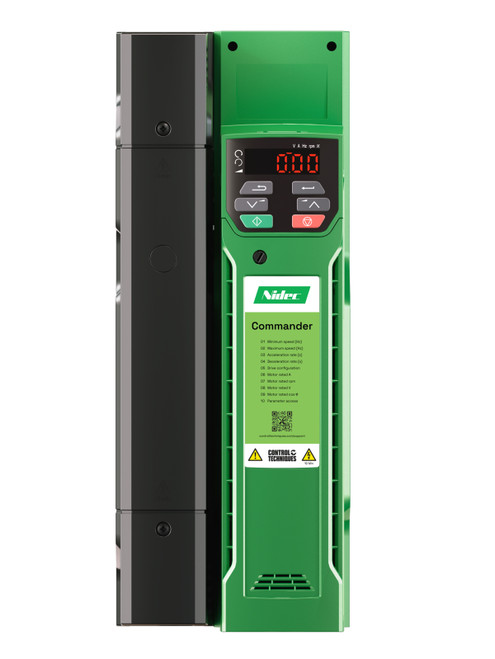

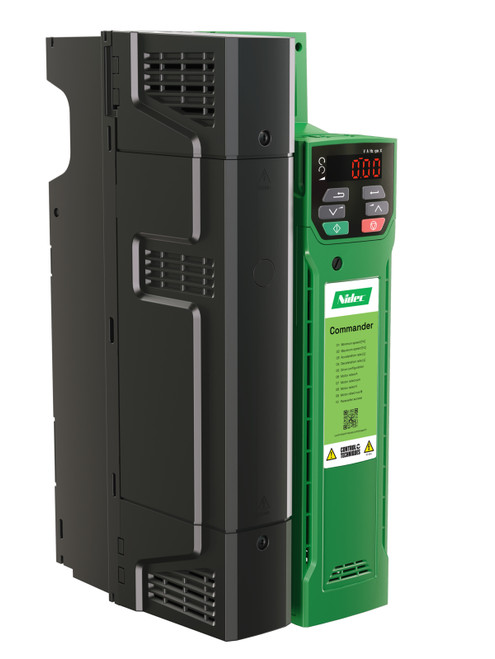

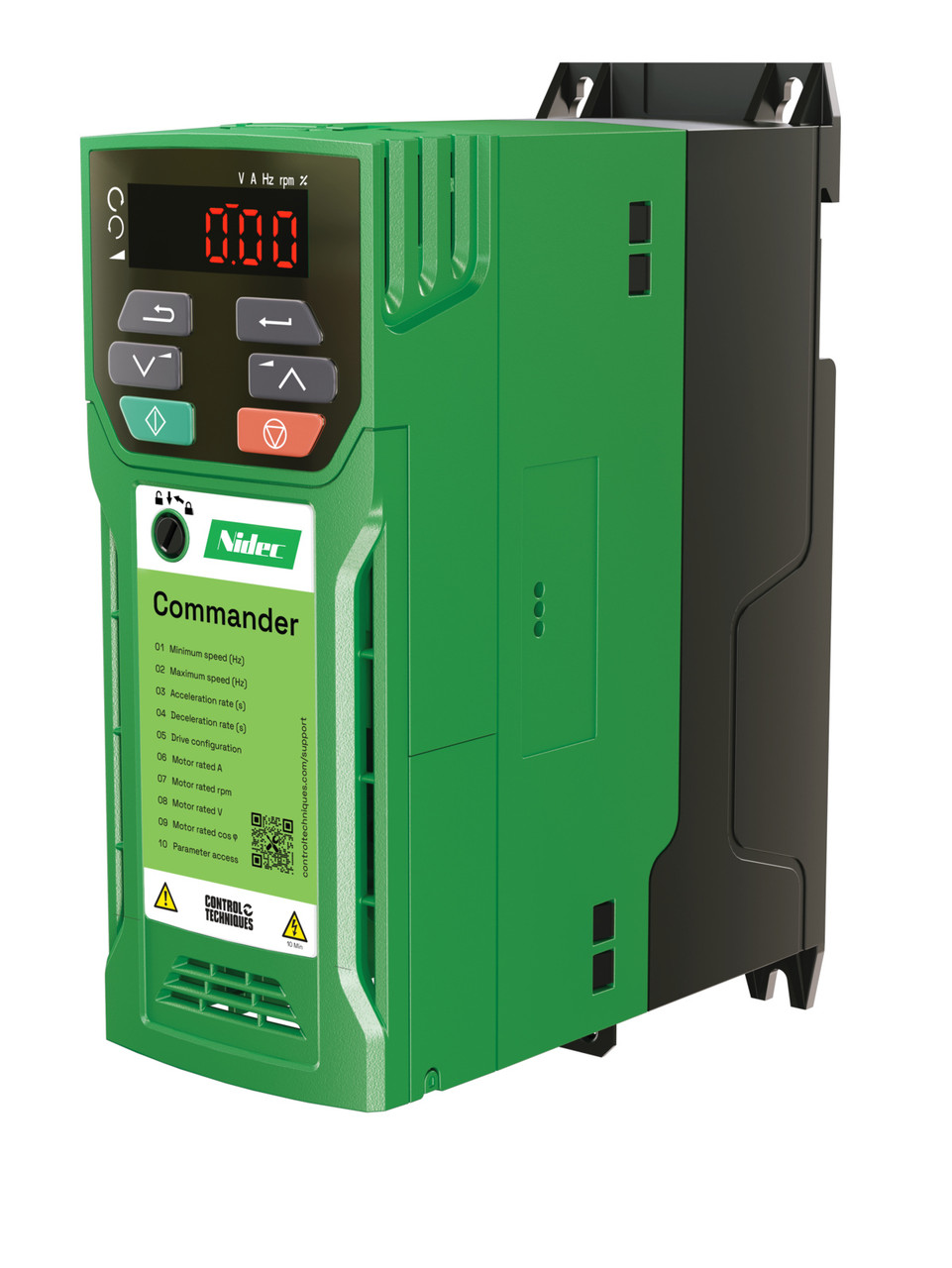

The new Commander C series has been designed to be a simple and compact AC motor speed controller that meets advanced requirements for a wide range of applications while optimizing the user experience.
Simple set up. 3 steps to control
Setting up a drive can require training, specialist knowledge and time.
But Commander C will get you up and running, from out of the box to controlling your motor, in minutes.
Three simple steps will set up your drive for most fan, pump, compressor, conveyor and general purpose applications!
|Open loop vector or V / Hz induction motor control||✓|
|Open loop Rotor Flux Control for induction motors (RFC-A)||✓|
|Ambient Operating Temperature||Size 1 - 4: -20°C to 40°C (-4°F to 104°F) @ 3 kHz switching freq. | Operation to 60°C (140°F) with de-rating |
Size 5 - 9: -20°C to 40°C (-4°F to 104°F) @ 3 kHz switching freq. | Operation to 55°C (131°F) with de-rating
|Cooling Method||Forced convection|
|Humidity||95 % non-condensing at 40 °C (104 °F)|
|Size 1 - 4: -40°C to 60°C (-40°F to 140°F) — 24 months Max. |
Size 5 - 9: -40°C to 55°C (-40°F to 131°F) — 24 months Max.
|Altitude||De-rate the continuous output current by 1% for every 100 m (328 ft) above 1000 m (3,280 ft) to a maximum of 3000 m (9,840 ft)|
|Vibration||Tested in accordance with IEC 60068-2-64 and IEC 60068-2-6|
|Mechanical Shock||Tested in accordance with IEC 60068-2-27 and IEC 60068-2-29|
|Enclosure Rating||IP20, NEMA 1 conduit kits available|
|Electromagnetic Capability||IEC/ EN 61800-3 Immunity and Emissions |
EN 61000-6-2: Immunity for industrial environments
EN 61000-6-4: Emissions for industrial environmentsM/br> EN 61000-3-2: Harmonic current emissions
An EMC data sheet is available on request
|RoHS||Complies with the Restriction of Hazardous Substances Directive (2011/65/EU)|
AC Supply Requirements
|Voltage||100 V models: 100 to 120 Vac ±10% |
200 V models: 200 to 240 Vac ±10%
400 V models: 380 to 480 Vac ±10%
|Phase||1Ø and 3Ø (Model dependent)|
|Maximum Supply Imbalance||2% negative phase sequence, 3% voltage imbalance between phases|
|Input Frequency||45 to 66 Hz|
|Input Displacement Power Factor||0.97|
|Switching Frequency||Size 1 - 4: 0.667, 1, 2, 3, 4, 6, 8 12 & 16 kHz |
Size 5 - 9: 2, 3, 4, 6, 8 12 & 16 kHz
|Output Frequency Range||0 to 550 Hz|
|Frequency Accuracy||±0.02% of full scale|
|Frequency Resolution||0.01 Hz|
|Analog Input Resolution||Voltage mode: 11 bits (unipolar) Current mode: 11 bits|
|Braking||Dynamic braking transistor included, requires external resistor|
|DC Bus Undervoltage Trip||100 V models: 175 Vdc |
200 V models: 175 Vdc
400 V models: 330 Vdc
|DC Bus Overvoltage Trip||Frame sizes 1 - 4: |
100 V models: 510 Vdc
200 V models: 510 Vdc
400V models: 870 Vdc
|Frame size 5 - 9: |
200V models: 415 Vdc
400 V models: 830 Vdc
|Drive Overload Trip||Programmable: Default settings: 180% for 3s, 150% for 60s|
|Instantaneous Overcurrent Trip||220% of rated motor current|
|Phase Loss Trip||DC bus ripple threshold exceeded|
|Over-temperature Trip||Drive heatsink temperature exceeds 95°C (203°F)|
|Short Circuit Trip||Protects against output phase-to-phase fault|
|Ground Fault Trip||Protects against output phase-to-ground fault|
|Motor Thermal Trip||Electronically protects the motor from overheating due to loading conditions|
Approval & Listings
|UL, cUL||UL file NMMS/8: E171230|
|EU||These products comply with the Restriction of Hazardous Substances Directive (2011/65/EU), the Low Voltage Directive (2014/35/EU) and the Electromagnetic Compatibility Directive, (2014/30/EU).|
|RCM||RCM Registered supplier No. 12003815281|
|ISO||Manufacturing facilities comply with ISO 9001:2015 and ISO 14001|
C300 models only: The Safe Torque Off (STO) function may be used as a safety component of a machine.
Type examination certificates by TÜV Rheinland:
Functional safety parameters:
UL functional safety approval: FSPC E171230
Whatever your application, Commander C is the perfect solution across industries
The Commander series are simple and compact AC motor speed controllers that meet advanced requirements in a wide range of applications. Their small footprint – among the smallest in their class – makes them ideal for machine builders and OEMs, where space is at a premium.
Pumping, Ventilating & Compressing
Lifting, Hoisting & Winching
Processing (Mixers, Kneaders, Crushers, Agitators, Centrifuges, Extruders)
The keypad is remote mountable, allowing flexible mounting on the outside of a panel (meets IP54/NEMA 12). Three line plain text, multi-language LCD keypad for rapid set-up and helpful diagnostics. Battery operated real-time clock allows accurate time stamping of events, aiding diagnostics.
Remote mountable, intuitive plain text, multilingual LCD keypad for rapid set-up and superior diagnostics (using the AI-485 adaptor along with a comms lead). Rapid and secure panel fit with 1 x 32mm hole rated to IP66 (NEMA 4).
System Integration Modules - Communications
SI-PROFIBUS interface module enables follower connectivity. It is possible to use multiple SI-PROFIBUS modules or a combination of SI-PROFIBUS and other option module types to add additional functionality such as extended I/O, gateway functionality or additional PLC features.
SI-DeviceNet enables follower connectivity. It is possible to use multiple SI-DeviceNet modules to provide additional functionality.
Commander C's SI-CANopen interface module supports various profiles, offering optimum flexibility.
SI-Ethernet can be used to provide high speed drive access, global connectivity and integration with IT network technologies.
SI-EtherCAT allows Commander C general purpose drive to connect and interface with EtherCAT networks.
SI-PROFINET-V2 allows Commander C to communicate and interface with PROFINET PLCs and networks.
System Integration Modules - Additional I/O
Extended I/O interface module to increase the number of I/O points on a drive. Provides additional: 4 x Digital I/O, 3 x Analog inputs (default)/Digital inputs, 1 x Analog output (default)/Digital input, 2 x Relays.
Port adaptor for SD card parameter cloning, and an input for 24 V back-up.
Has a built-in memory for parameter cloning and an input for 24 V back-up.
Adaptor that allows the drive to communicate via RS485.
AI-485 24 V Adaptor
Adaptor with 24 V input.
The USB comms cable allows the drive to connect to a PC for use with Commander's PC tools.
Software and Support
Intuitive commissioning software
Based on Control Techniques’ 25 years' experience, Connect is our latest drive configuration tool for commissioning, optimizing and monitoring drive/system performance.DOWNLOAD
Advanced machine control
Control Techniques' Machine Control Studio provides a flexible and intuitive environment for programming Commander C’s new automation and motion control features.DOWNLOAD
Diagnostic Tool is a fast and simple tool, which allows users of Control Techniques' drives to quickly solve any error codes that the drive may show.DOWNLOAD
Free access web pages provide ‘how-to’ videos, step by step guides and comprehensive technical manuals for your installation.
