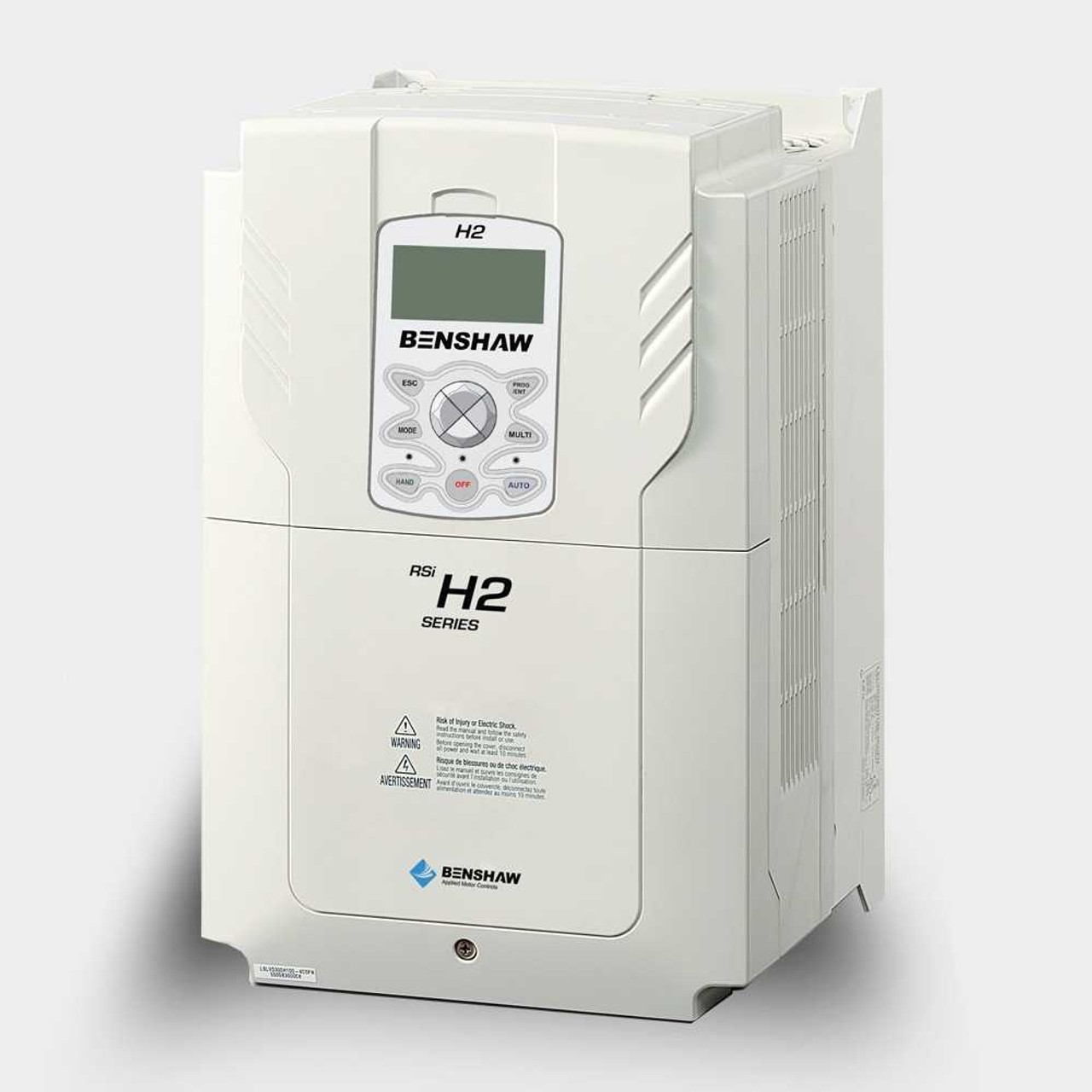

VFD-RSI-040-H2-4C Benshaw H2 Series General Purpose Industrial Drive

Benshaw H2 Series Multi-Purpose Industrial Drives comply with key industry standards (UL/cUL/CE), offer built-in EMC filters (standard in all 480V models), standard RS-485 Modbus/RTU/BACnet/Metasys-N2 communication cards and a full range of programmable features … making them an ideal choice for OEMs, panel builders and end users alike.

WinDRIVE – PC Based Software for Commissioning and Monitoring

Optional Cards

• Ethernet/IP
• Modbus – TCP
• Lonworks

H2 Series Programming

Standard Hardware and Software Features

H2 Series Pump/Fan Software – Standard Features

• PID Control with Sleep and Wake-up, Broken Pipe and Under Load Detection
• Multi Motor Control – One drive to control the starting and stopping of up to 5 auxiliary motors
• Lead/Lag and Alternating Control
• Pre-Fill and Soft-Fill
• Standard BACnet and Metasys-N2
• Fire Mode Input
• Start and End Ramp – Settings for quicker accel/decel times when below minimum speeds
• Decel Valve Ramp – Separate decel ramp frequency and time settings when stopping
• Time Event Scheduling – Program run times for 7 days operation
• Flow Compensation – Compensate for losses in long pipe lengths
• Backspin Timer
• Pump Clean Operation
• Load Tuning
• Drive Output Level Detection – Set warning/trip limits (current, power, others) to detect drive operation beyond limits
• Energy Saving Operation
• Oil Pump Starter Control ( compressor systems)
