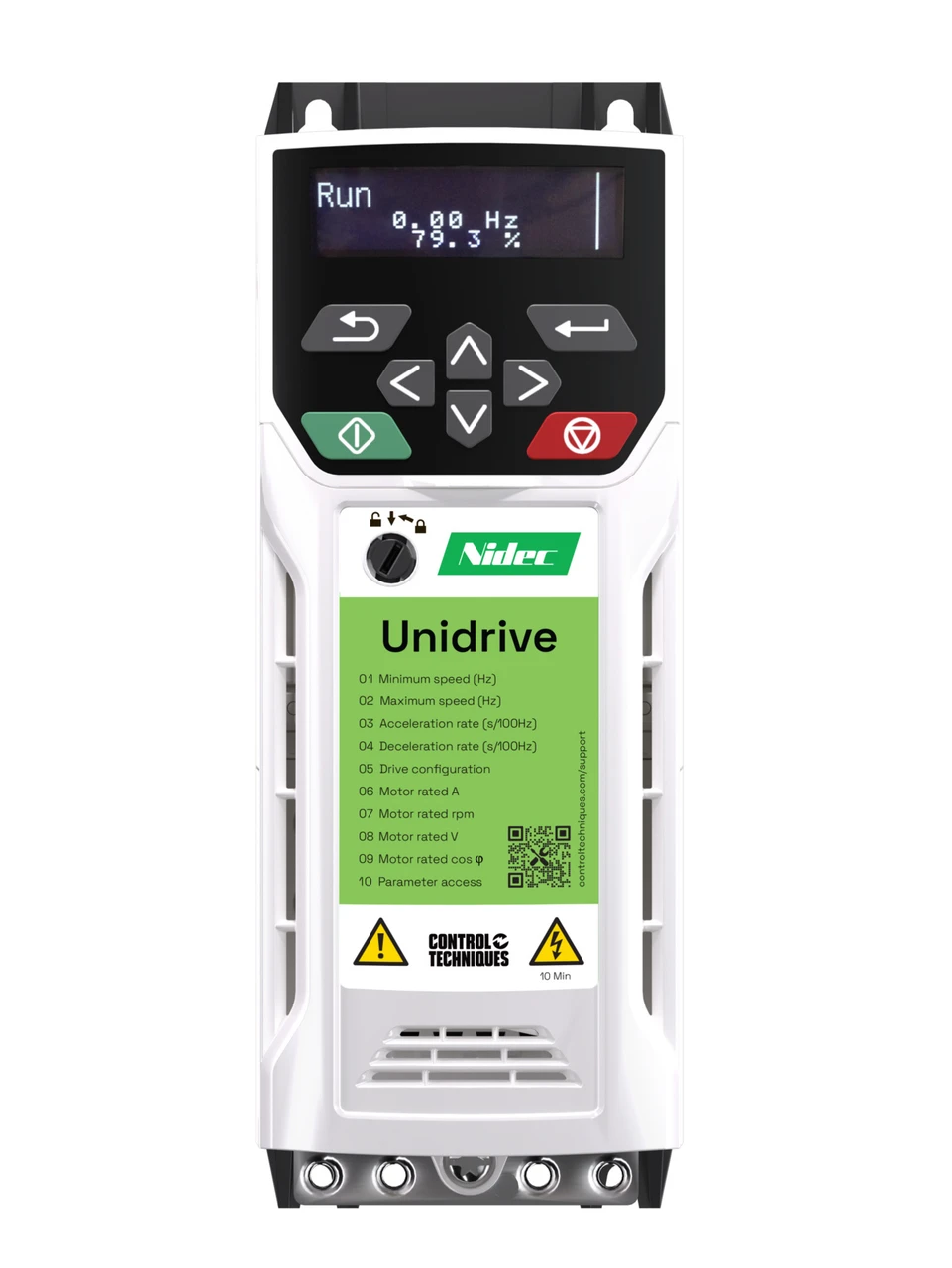

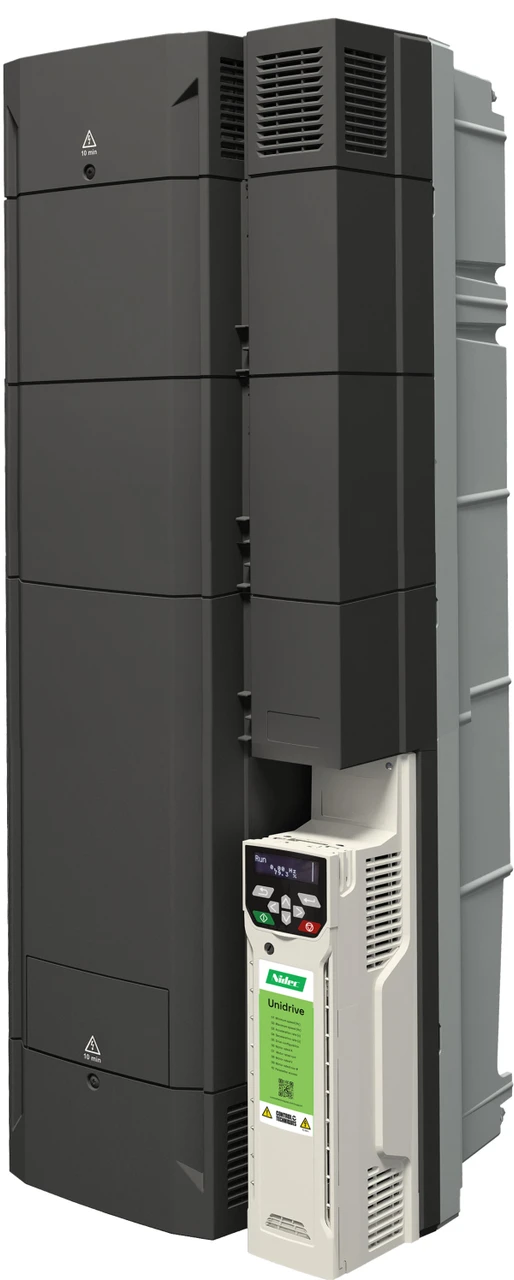

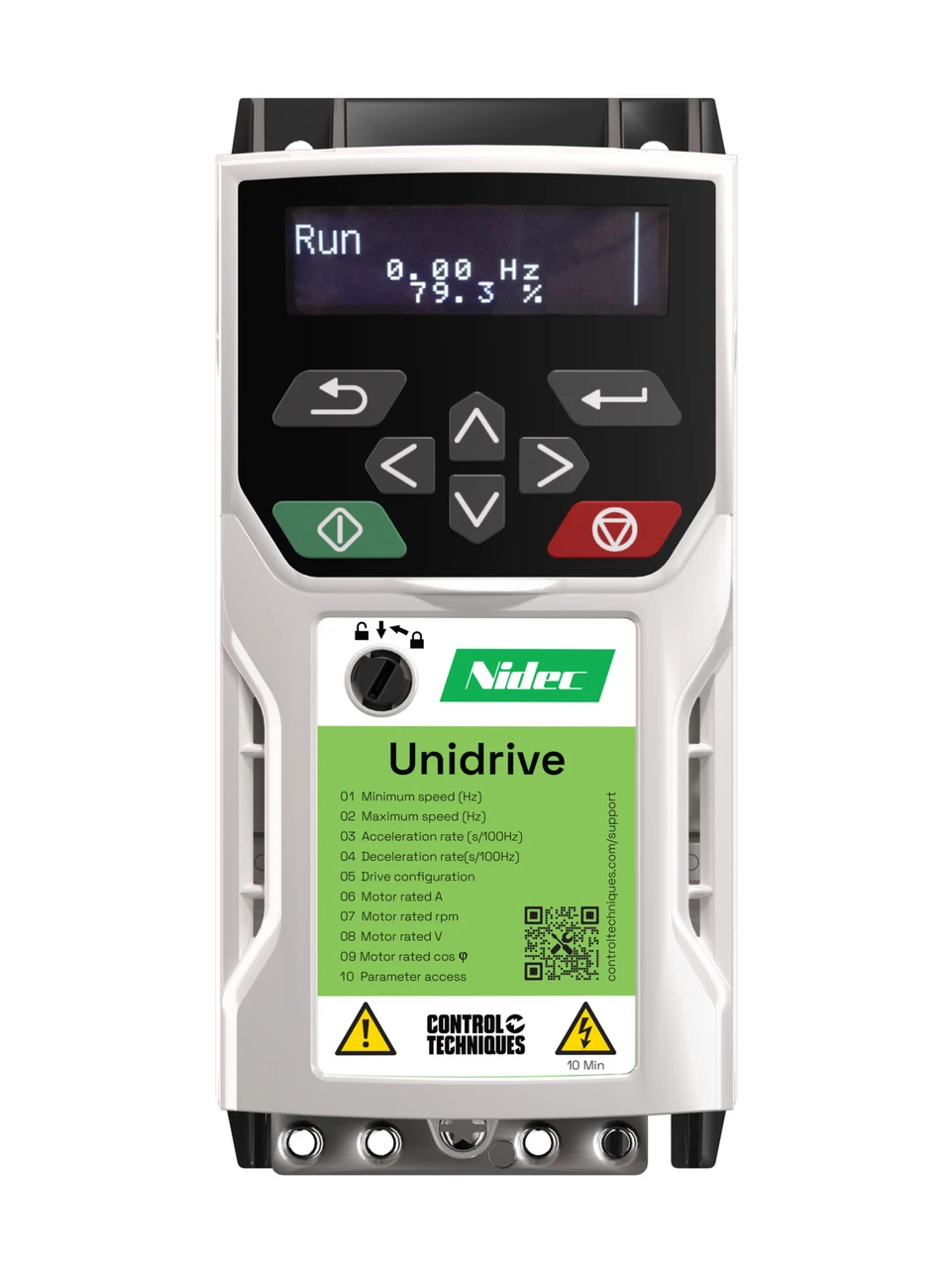

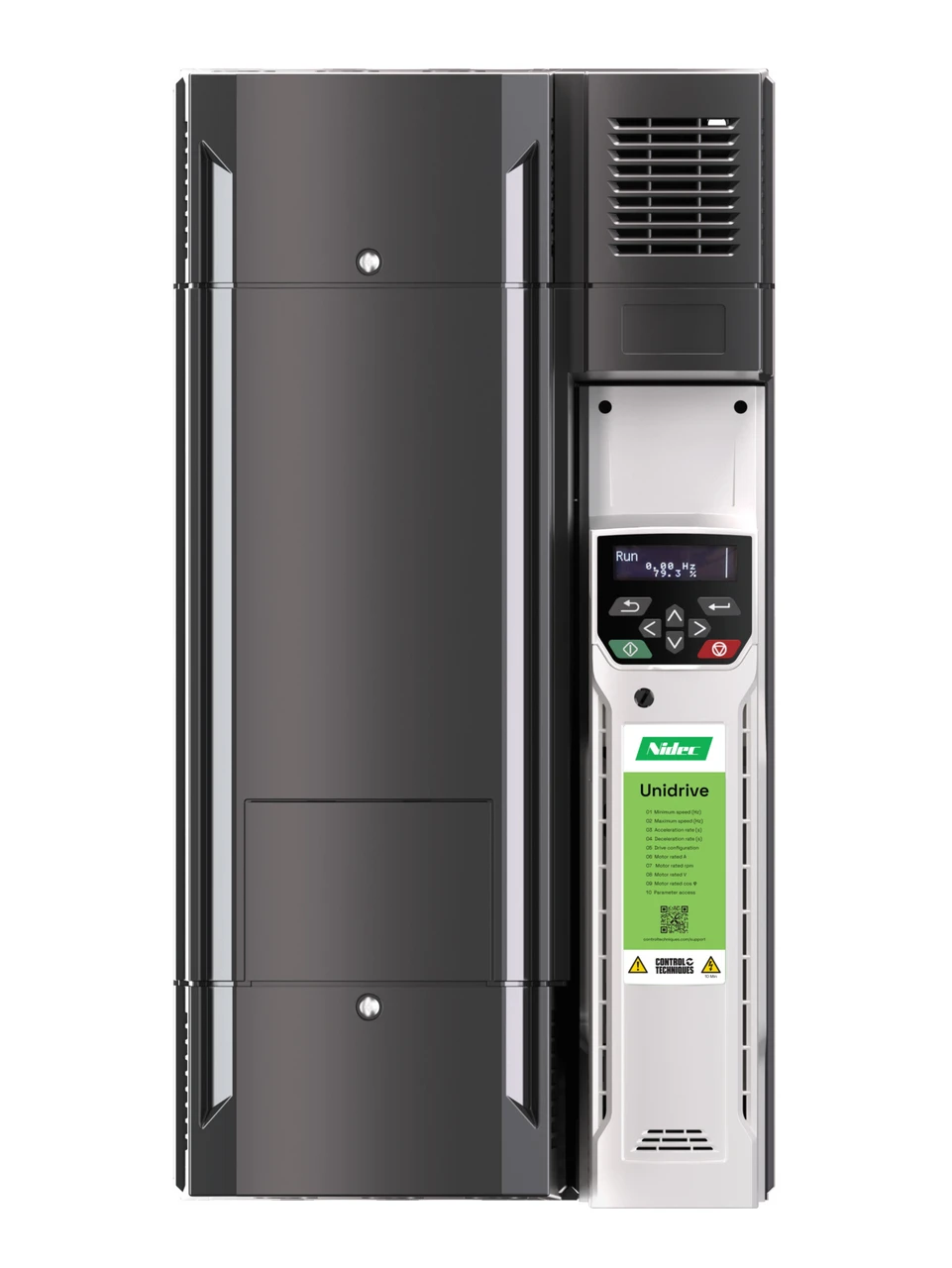

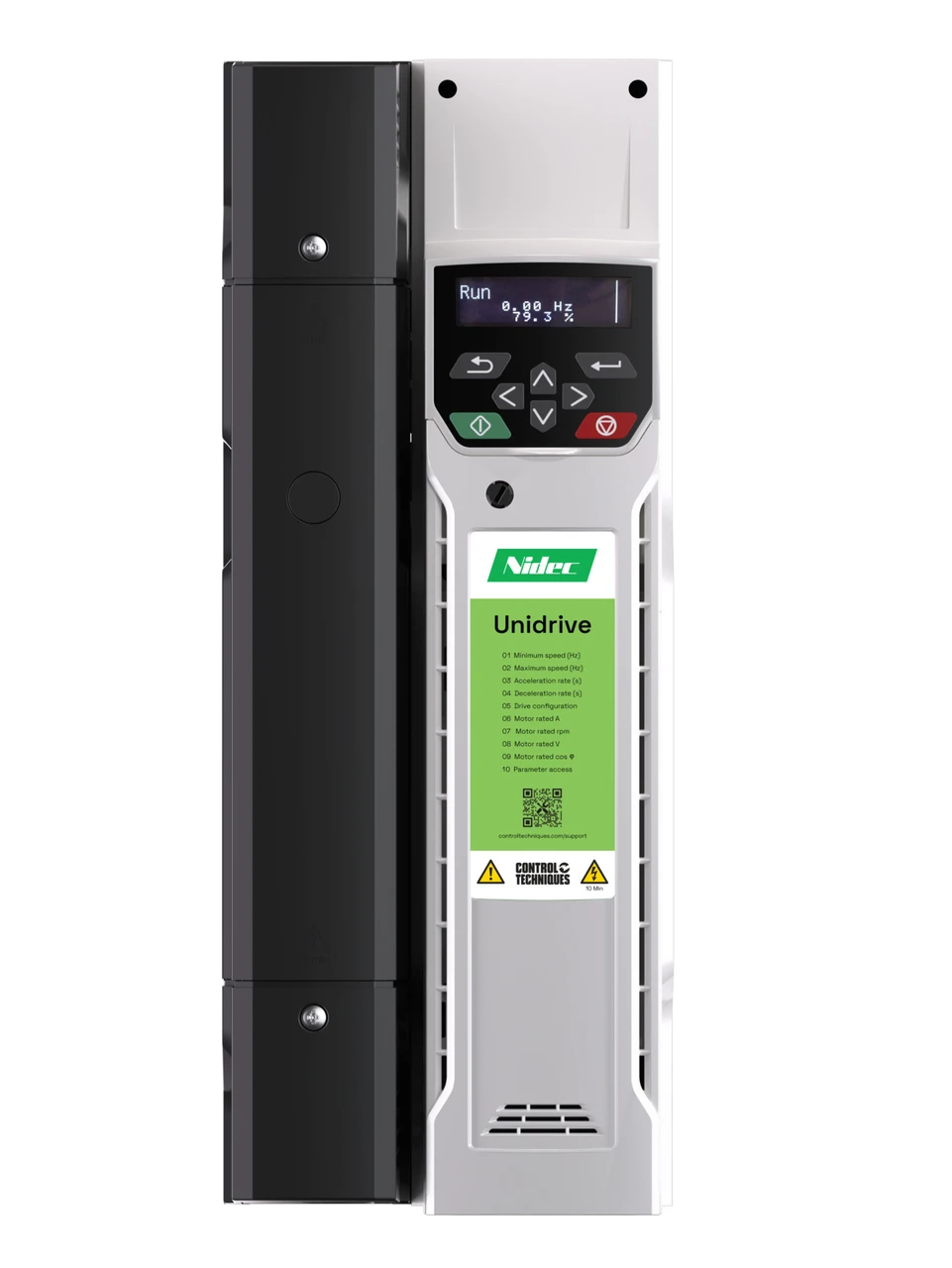

Unidrive M400
This product comes with 5-year warranty as standard
No registration. No extra cost. Just peace of mind from day one. Learn more.
Quick setup and diagnostics with real text display, onboard PLC and safety inputs
Control Techniques’ Unidrive M400 variable frequency AC drive (VFD) minimizes downtime with an optional plain-text, multi-language backlit LCD keypad enabling rapid setup and clear diagnostic help.
The integrated PLC can execute a substantial range of sequencing and logic programs. Unidrive M400 has an impressive onboard I/O count, dual Safe Torque Off (STO) inputs, and can accommodate a single SI option module for additional flexibility.
The SI module has options for industry standard fieldbus, Ethernet, and expanded I/O. Additionally, an AI option slot is available for parameter cloning, 24V backup, and Modbus RTU communication options. A CI-485-ADAPTOR is also available to provide additional Modbus RTU communications in place of the optional keypad.
Features
Minimize downtime and system setup time with advanced keypad options
- Informative, multi-language, 3 line display aids setup and provides diagnostic information
- 4 navigation buttons facilitate intuitive navigation and programming
- Keypad options available: No keypad as standard
- CI-Keypad-LCD: Drive mounted LCD plain-text keypad
- Remote-Keypad: IP66 (NEMA 4) rapid panel mount (1 x 32 mm dia hole)
- Remote-Keypad-RTC: IP54 (NEMA 12) panel mounted, LCD plain-text with Real-Time Clock for timestamping diagnostic information
- No keypad (standard): Control/programming performed by PC or communications
Enhance up-time and system flexibility
- Flexible system integration and remote diagnostics through optional industrial Ethernet and fieldbus communications
- Flexible I/O that is expandable with SI-I/O option module
- Unidrive M400 incorporates an onboard PLC which can execute Machine Control Studio programs for logic and sequencing with real-time tasks - removing the need for additional PLC's
Complete IEC 61131-3 programming environment
- Structured text (ST), function block (FBD), sequential function chart (SFC), ladder diagram (LD), instruction list (IL), and continuous function chart (CFC)
Improve throughput with advanced open-loop motor control algorithms
- Rotor Flux Control (RFC-A) provides exceptional induction motor control and high stability for demanding applications
- S-ramp accel / decel profiling provides smooth speed transitions to minimize “jerk”
- 180% motor overload suitable for heavy industrial machinery applications
- Precise frequency following is possible form an encoder or frequency/direction inputs
Conform to safety standards, maximize uptime and reduce costs by integrating directly with safety systems
- Unidrive M400 has integrated dual STO inputs for SIL3 / PLe conformity, eliminating the need for external safety components
