Product Description
S100-02453-0B0000

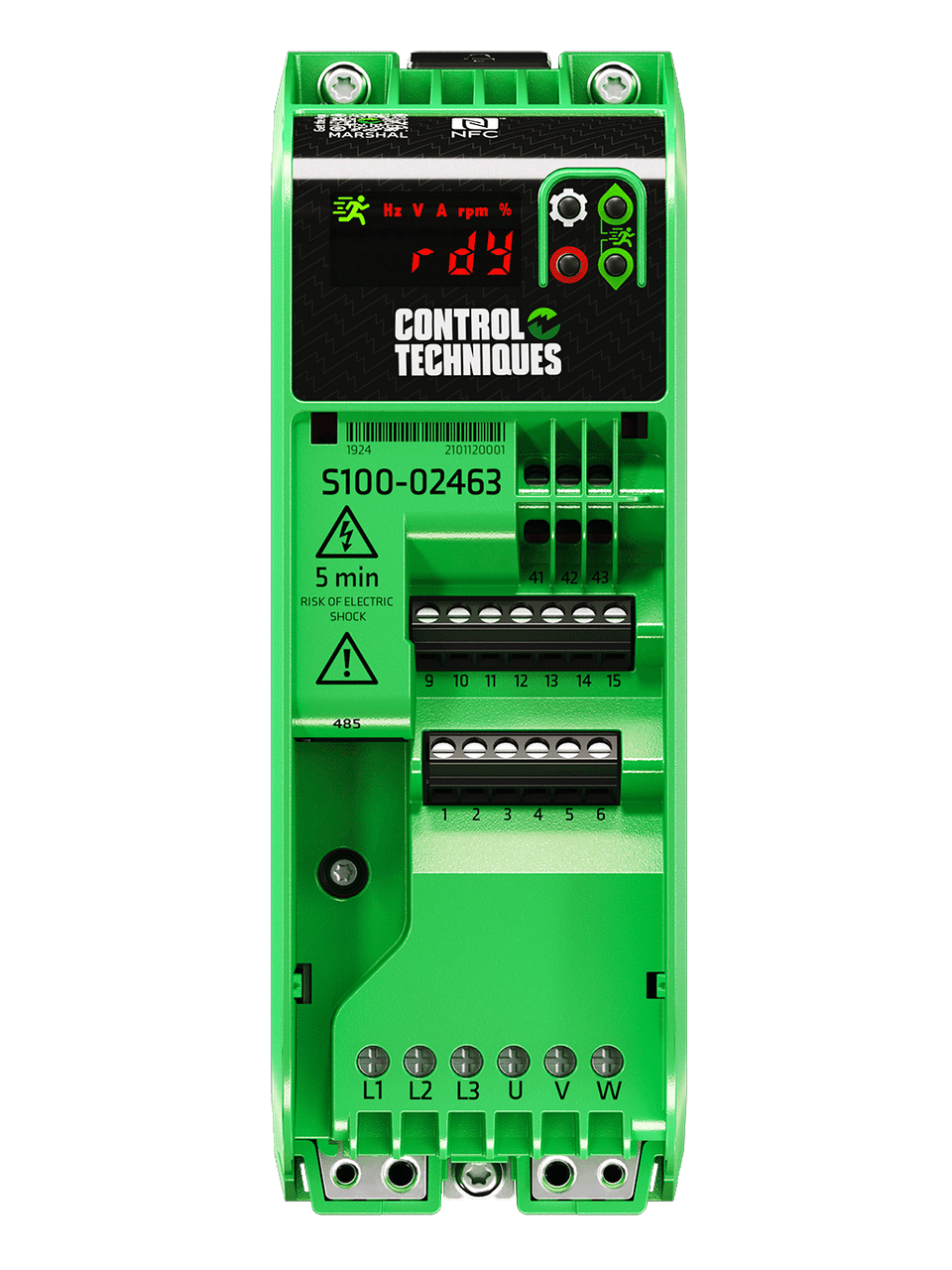

Nidec Control Techniques Commander S100
Commander S100 460Vac 3 Phase input / 460Vac 3 Phase Output
Max Cont Output Current (HP): Normal Duty - 3.7A (2HP), Heavy Duty - 3.7A (2HP)
Drives include EMC filters rated in accordance with IEC 61800-3, category C3
Commander S Micro AC Drive
0.25 to 5 HP (0.18 to 4 kW)
1Φ 115 & 208-230 V, 3Φ 208-230 & 380-480 V
Making simple applications, simple.
Take charge of motor control and energy savings with the latest addition to the Control Techniques portfolio. With a feature set optimized for simple applications, Commander S provides a cost-effective solution for installations that require plug and play convenience straight from the box.
Commander S is the first drive to come with an app interface as a standard feature. The MARSHAL App is our revolutionary way to interface with the drive covering commissioning, monitoring, diagnostics and support.
Marshal: your drive expert in the field
Revolutionize the way you interface with your drive
Control Techniques has a long tradition of challenging the status-quo with innovative ideas and making a profound impact in the drives industry. And we've done it again with MARSHAL: Control Techniques is the 1st drive supplier to implement NFC technology as standard on a drive and offer the MARSHAL App interface at no extra cost.
MARSHAL is your drive expert in the field. This rich content interface means you can commission, clone, diagnose system issues and monitor the drive in just a few screen taps.
WANT TO KNOW MORE ABOUT MARSHAL? CLICK HERE.
 | Easy To InstallThe sleek curved design of Commander S optimizes component layout for a small footprint and easy access to terminals. The click-on/click-off DIN rail mount makes installation remarkably easy. |
 | Easy To UseUsing our new Marshal app (Android/iOS) your drive can be configured in under 60 seconds.
|
 | ReliableDurability is at the core of Commander S design, guaranteeing performance throughout its whole lifetime. |
 | Cost EffectiveEquipped with unique features designed to save you time, energy and money. |
Making Simple Applications, Simple.
 | Flow Control ApplicationsFans, Pumps, and Compressors |
| |
 | Moving ApplicationsConveyors, Treadmills, Automatic Doors & Barriers |
| |
 | Processing ApplicationsMixers, Crushers, Agitators, Centrifuges, Kneaders, Spinning & Braiding Machines for Textile |
| |
Power & Control
| Voltage | 1Φ AC 115 & 230 V 3Φ AC 230 & 460 V |
| Power Range | 0.25 to 5 hp / 0.18 to 4 kW |
| Duty Rating | Heavy Duty |
| Input Frequency | 50/60 Hz |
| Output Frequency | 0 to 300 Hz |
| Switching Frequency | 4 kHz and 12 kHz |
| Motor Control | Linear V to F , Square V to F, Resistance, Compensation |
| Stopping Modes | Coast, Ramp, Ramp & DC Injection Braking, DC Braking with 0 Hz detect, Timed DC Braking, Distance Stop |
Communications
| Communications | RJ45 for Modbus RTU NFC for app interface |
Inputs & Outputs
| Analogue | 2 x Analog inputs 1 x Analog output |
| Digital | 4 x Digital inputs 1 x Digital input / output |
| Relay | 1 x Relay (single pole, double throw relay) |
Standards
| Approvals | CE, UKCA, cULus, C-Tick, EAC, KC |
| Product Safety Standards | IEC/EN/KN/UL 61800-5-1, CSA C22.2 No.274, GB12668.501-2013 |
| Emission Compliance | C3 internal EMC filters C1 & C2 with external EMC filters C1 internal EMC filters, for selected 1Φ 230 V variants |
Mounting & Environment
| IP Rating | IP20 |
| Mounting | Click on/click off DIN rail mount Screw mount 0 mm side by side |
| Ambient Temperature | Operation without de-rate: 14°F to 104°F (-10°C to 40°C) Operation with de-rate: 14°F to 140°F (-10°C to 60°C) Storage: -40°F to 140°F (-40°C to 60°C) |
Remote Interface
 | Remote Keypad IP66 Remote mountable, intuitive plain text, multilingual LCD keypad for rapid setup and helpful diagnostics from the outside of a panel. Meets IP66 (NEMA 4). |
 | HMI The MCh panels and MChMobile Software have been designed for the easy development of HMI applications including factory and building automation. |
Optional Extras
 | Cable Management Bracket Use of the optional cable management bracket allows the wiring cables to be neatly secured under the drive. |
 | Fiber Filter The optional fiber filter allows the drive to operate efficiently even in environments prone to airborne fibers (e.g.: textile applications). Filter cleaning can be incorporated into the preventative maintenance cycle, lowering the risk of an unplanned outage. |
 | RS485 Cable The USB communications cable allows the drive to connect to a PC for use with Commander's PC tools. |
App interface
 | Marshal app Marshal is your drive expert in the field. This rich content interface means you can commission, clone, diagnose system issues and monitor the drive in just a few screen taps.
|
Intuitive commissioning software
 | Connect - Commissioning tool Based on Control Techniques’ 25 years' experience, Connect is our latest drive configuration tool for commissioning, optimizing and monitoring drive/system performance. DOWNLOAD |
Product Portal
 | Product Portal Our product portal provides you with detailed product specifications, datasheets, 3D CAD models and product configurator. GO TO PORTAL |
