RB2-1-S-052A-12C

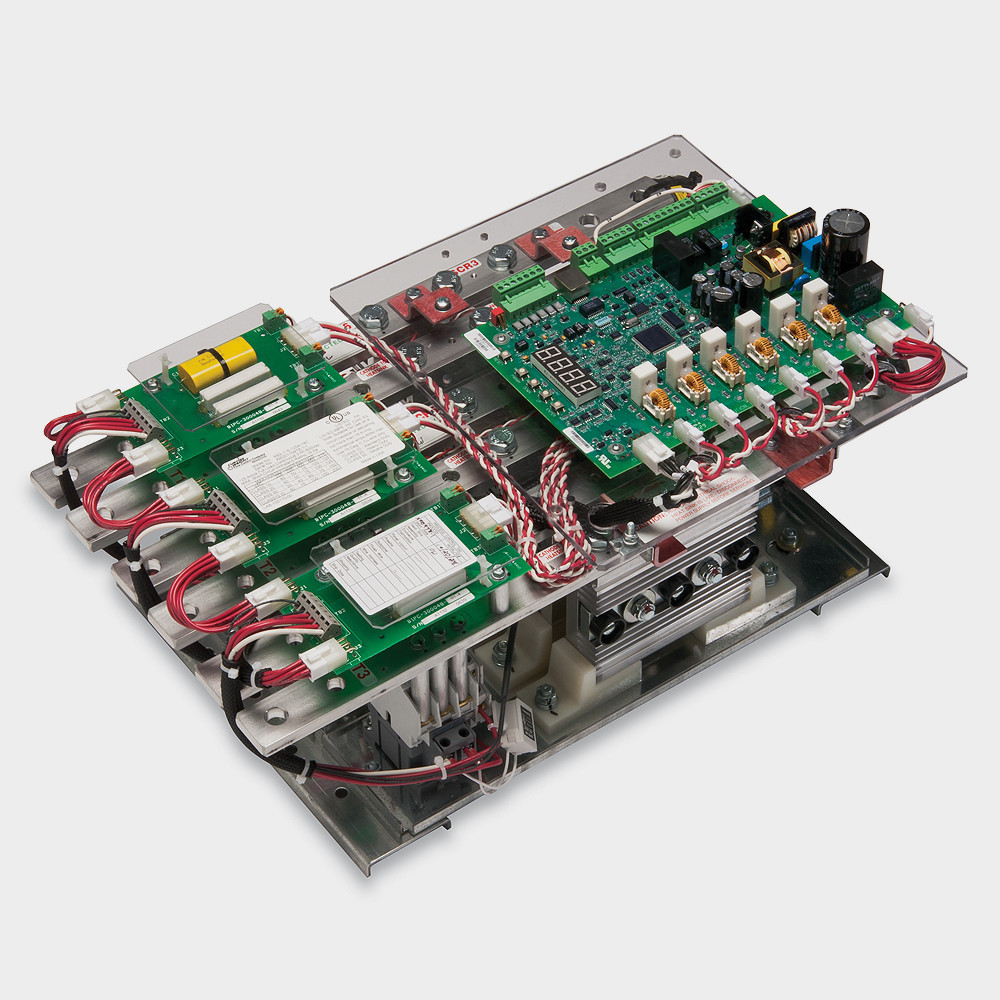

Benshaw RB2 Open Chassis Soft Starter with MX2 Technology
Standard Duty: 20HP, 230V / 40HP, 460V / 50HP, 575VHeavy Duty: 20HP, 230V / 40HP, 460V / 50HP, 575V
Severe Duty: 15HP, 230V / 30HP, 460V / 40HP, 575V
Benshaw RB2 Open Chassis Soft Starters are field proven, rugged, solid state starters designed for use in a wide range of industrial applications. Select based on your application (Standard Duty, Heavy Duty or Severe Duty) and voltage ratings from 208-575VAC up to 838A.
The RB2 soft starter includes an integral bypass contactor in a modular design with separate poles for each phase, allowing for ease of maintenance. Benshaw’s MX2 control technology provides basic motor protection with adjustable overload settings. It also provides user adjustable motor ramp profiles that can be tailored to the motor load. The soft starter can be programmed using a board-mounted LED keypad, Modbus register mapping, or optional remote mount LCD keypad.
KEY ADVANTAGES:
- Modular power stack assembly for ease of maintenance
- ModBus standard/other Fieldbus optional
- Multiple starting ramps for various applications
- Profibus
- DeviceNet Integral Bypass Contactor
- Integral bypass contactor for efficient operation, eliminating the need for external fans
- Integrated motor protection
- Integrated metering system diagnostics
- Ethernet IP/TCP
- Dual ramp capability for loaded/ unloaded applications
- Power stack has multiple ratings for application flexibility
Guaranteed … for three full years. * Only Benshaw has a three year guarantee. Every Benshaw solid state starter is guaranteed for three full years. Other manufacturers limit their warranties to just one year. But at Benshaw, we believe that because we build them better, we can guarantee them longer. *Subject to factory authorized startup.
