QMP700A4-CC Nidec Control Techniques Quantum MP DC Drive

Product Description

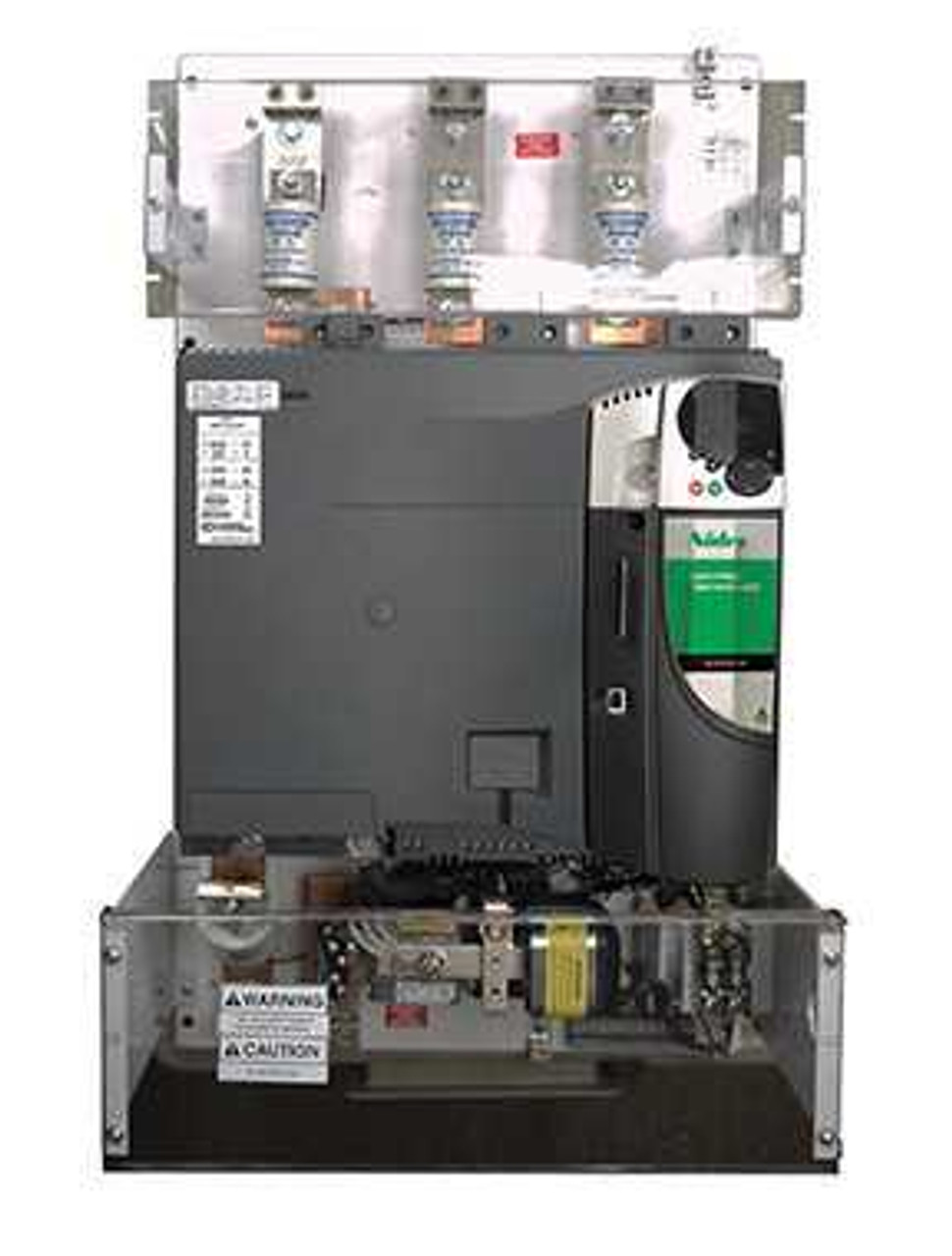

Quantum QMP700A4-CC DC Drive

Nidec Control Techniques Quantum MP

Conformal Coated to help prevent corrosion

208-480Vac Input

700 Amps Armature, 20 Amps Field, Non-Regen

200hp @ 230Vac

400hp @ 460Vac

Control Techniques’ Quantum MP is a packaged Mentor MP high performance DC drive providing reliability, power, and control to increase productivity for both new machines and applications in which DC motors are already installed.

The Quantum MP package includes the drive, fusing, power switching and 115Vac interface making it the ideal choice for rapid retrofits with regenerative and non-regenerative modules available to suit your application.

The Quantum MP saves engineering time and panel space making it ideal for North American customers.

Features

Flexible system integration

Quantum MP is a modern packaged DC drive that has unparalleled flexibility through the integration of Control Techniques' AC drive control technology on a DC drive. This means the Quantum MP inherits system integration flexibility, such as:

• Two available SM option module slots for automation control, I/O, feedback devices and communications
• SMARTCARD for PLC program and parameter storage
• PC tools for easy configuration, monitoring, and diagnostics

Additional features include:

• Patented (pending) galvanic isolation protects control circuits against poor quality industrial power supplies and high voltage circuitry
• Powerful onboard intelligence fine-tunes the drive’s functionality to the application and allows the removal of troublesome analog control circuits
• Communication options include EtherNet/IP, Modbus TCP, PROFIBUS DP, and DeviceNet allowing Quantum MP to be integrated within any automation system
• CTSoft, a windows-based software package, provides an intuitive environment for configuring the drive's functionality
• Quantum MP integrates closely with Control Techniques AC drives using CTNet drive-to-drive communications

Technology for reliability and performance

Quantum MP takes a step forward in performance, robustness and reliability:

• High performance motor control
• Galvanic isolation (patent pending) between power and control protects the control circuits and other equipment connected to the drive from the high voltages on the power circuit. This feature is unique on DC drives
• Protection system against poor industrial power supplies and lightning strikes
• Integrated drive and motor protection

Flexible field control

Internal field controller with intelligent field weakening means that 90 % of applications require no additional external controller

• • • Integrated field control on frame size 1 to 8 A
    • Integrated field control on frame size 2 to 20 A
    • Flux control for enhanced open-loop performance
    • External FXMP25 field control to 25 A

Specifications

• • • High-speed semiconductor fusing for reliable circuit protection
    • 115 Vac control interface to coordinate signals and commands to the drive

    • DC loop contactor with DB pole disconnects the Quantum MP drive from the motor armature when the stop command is given or in the event of a power failure

    • DC output fuse on all regen models helps avoid nuisance trips
    • Regenerative and non-regenerative modules available to best match application needs
    • Multiple fieldbus options including EtherNet/IP, Modbus TCP, PROFIBUS DP, and DeviceNet are used to integrate Quantum MP drives into automation systems
    • Enclosure IP00

Environment

• Ambient operating temperature: 32 ° to 131 °F (0 ° to 55 °C )
• Derate current 1.5% per °C from 104 ° to 131 °F (40 ° to 55 °C )
• Cooling method QMP25-QMP45 natural convection
• QMP75 and larger forced convection
• Humidity 90 % relative humidity at 122 °F (50 °C)
• Storage temperature: -40 ° to 131 °F (-40 ° to 55 °C )
• Altitude: 0 to 9,842 ft (0 to 3,000 m), derate 1 % per 380 ft (100 m) between 3,280 ft (1,000 m) and 9,842 ft ( 3,000 m)

AC supply requirements

• Supply voltage 208 to 480VAC ±10 %
• Frequency 48 to 65 Hz
• Supply fault current 100 kA
• Drive efficiency 99 %
• Armature voltage (max.) non-regen drives — 1.35 X input VAC; regen drives — 1.15 X input VAC
• Field voltage (max.) 0.9 X input VAC with 1-phase input

Control

• Analog input resolution: 16-bit plus sign, 250 μs (Qty 1), 10-bit plus sign, 250 μs (Qty 2)
• Speed loop: 250 μs loop update
• Current loop: 35 μs current sampling time
• Feedback methods
• Encoder (resolution 0.01 %)
• DC tachometer (resolution 0.1 %); AC tachometer (resolution 1 %) (300 V max.)
• Armature Voltage (resolution 5 % )
• Optional additional incremental and absolute encoders (Qty 2)
• Field control current regulated with flux control
• QMP25-QMP 8 A
• QMP350-QMP700 20 A
• Optional FXMP25 25 A
• Serial communications: 2- or 4-wire RS422 or RS485, optically-isolated
• Protocol: ANSI x 3.28-2.54-A4 or Modbus RTU
• Baud rate: 300 to 115,200

Protection & diagnostics

• Control: Galvanic electrical isolation, 24 Vdc power supply
• Supply: Loss, under-voltage, overvoltage, transient suppression, semiconductor fuses
• Armature: Open circuit, I2t overload, instantaneous overcurrent, semiconductor fuse (regen only)
• Field: Loss, overcurrent
• Motor: Motor over-temp switch or thermistor over-temperature trips
• Drive thermal: Heatsink, SCR junction, control board and option module(s)
• Current loop loss: Loss of analog current reference

24 Vdc I/O

• Digital inputs: 3 x 24 Vdc
• Digital input/outputs: 3 x 24 Vdc
• Analog inputs: 1 x 16-bit differential
• 0-10 V, 2 x 10-bit voltage or mA
• Analog outputs: 2 x 10 bit voltage or mA

120 Vac I/O

• Inputs
• EMERGENCY STOP
• STOP
• RUN
• JOG
• FWD/REV
• RESET
• Outputs
• DRIVE ON
• Relays (quantity 2)

Ratings and dimensions

*Current ratings are at 104 °F (40 °C) with 150 % overload for 30 s. (R) indicates optional order code for 4-quadrant operation.

HP provided for convenience. Always size drive based on motor Amps.

Options

Keypads and parameter storage

	MP-Keypad MP-Keypad is a multi-lingual, hot-pluggable, backlit LCD display for Mentor MP drives
	SM-Keypad SM-Keypad is a high brightness LED keypad for Unidrive SP (except frame size 0) and Mentor MP drives
	Smartcard This memory device can be used to backup parameter sets and PLC programs and copy them from one drive to another

Drive Interface Units - Communications

	CT USB Comms Cable The USB Comms cable allows the drive to connect to a PC for use with Unidrive M's PC tools*

Automation and Motion option modules

	SM-Apps Plus The Applications Plus solutions module offers high performance programmable logic and motion control together with high speed I/O and CTNet, a high speed Fieldbus.
	SM-Apps Lite V2 User programmable logic and motion control module for standalone drive applications or for when the drive is connected to a centralized controller via I/O or Fieldbus.
	SM-Register A flexible, high performance solution for programmable motion requiring high speed registration features

Communication option modules

	SM-CANopen CANopen interface supports various profiles including several drive profiles
	SM-DeviceNet SM-DeviceNET option module
	SM-EtherCAT EtherCAT slave/follower option module, for high performance applications.
	SM-Ethernet   Supports EtherNet/IP and Modbus TCP and can generate emails. Provides high speed drive access, global connectivity and integration with IT network technologies.
	SM-Interbus   Interbus interface option module
	SM-PROFIBUS-DP PROFIBUS DP Slave/follower option module.
	SM-PROFINET PROFINET RT is an Ethernet based industrial network protocol adapting Ethernet hardware and protocols

Input and Output Option Modules

	CTNet IO Flexible I/O system for remote connectivity with Control Techniques’ SM-Apps Plus and SM-Register option modules
	SM-I/O 24V Protected Overvoltage protected I/O module
	SM-I/O 120V Module that provides digital I/O rated to 120Vac
	SM-I/O 32 Extended digital I/O, adding 32 digital high speed bi-directional I/O points to the drive
	SM-I/O-Lite Extended I/O interface with reduced functionality
	SM-I/O-PELV NAMUR standard I/O interface with high speed I/O
	SM-I/O-Plus Extended I/O interface to increase the number of I/O points on a drive
	SM-I/O-Timer Extended I/O option module with real time clock

Feedback Option Modules

	SM-Encoder-Out   Incremental encoder input and output option module that enables connection with external motion controllers
	SM-Encoder-Plus Incremental encoder input option module
	SM-Uni-Encoder Additional combined encoder input and output interface supporting Incremental, SinCos, HIPERFACE, EnDAT and SSI encoders

External Field Control

FXMP25 - DC field controller (up to 25 A) External field controller for DC motors with field currents up to 25 A
