Product Description

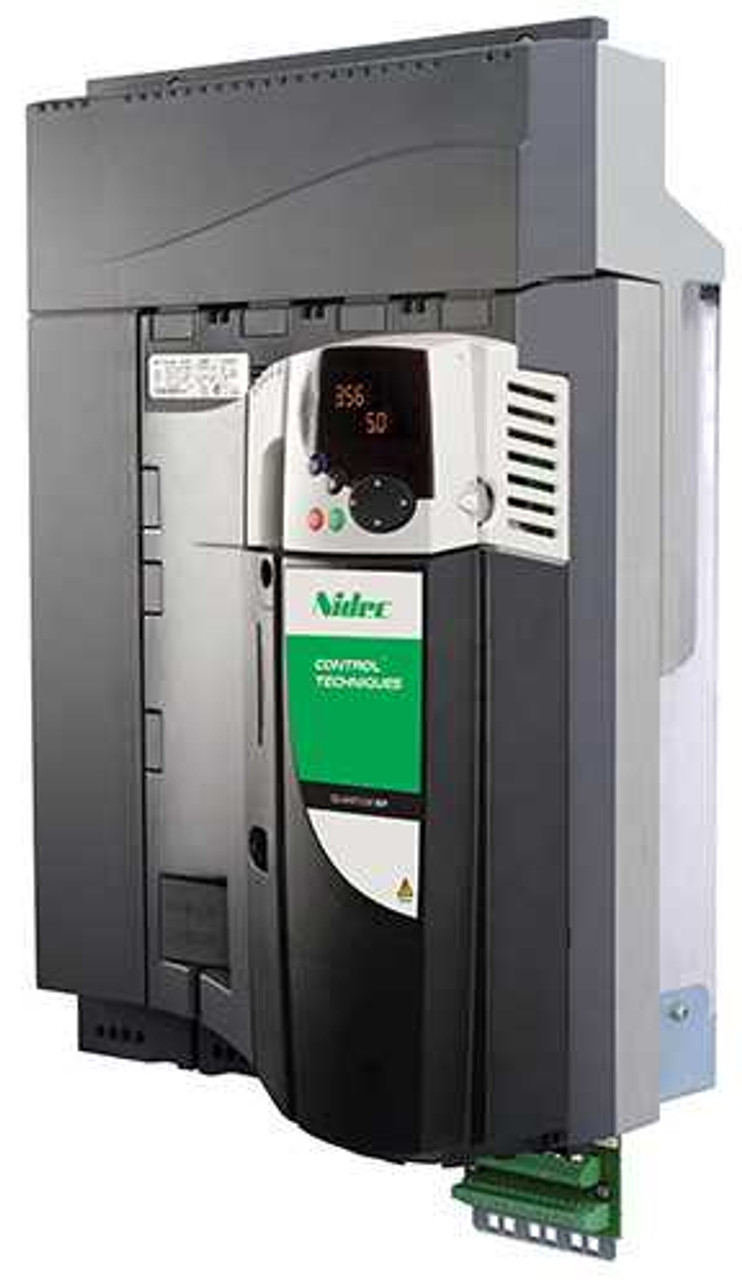

Quantum QMP25A4-CC DC Drive
Nidec Control Techniques Quantum MP
Conformal Coated to help prevent corrosion
208-480Vac Input
25 Amps Armature, 8 Amps Field, Non-Regen
5hp @ 230Vac
10hp @ 460Vac
Control Techniques’ Quantum MP is a packaged Mentor MP high performance DC drive providing reliability, power, and control to increase productivity for both new machines and applications in which DC motors are already installed.
The Quantum MP package includes the drive, fusing, power switching and 115Vac interface making it the ideal choice for rapid retrofits with regenerative and non-regenerative modules available to suit your application.
The Quantum MP saves engineering time and panel space making it ideal for North American customers.
Features
Flexible system integration
Quantum MP is a modern packaged DC drive that has unparalleled flexibility through the integration of Control Techniques' AC drive control technology on a DC drive. This means the Quantum MP inherits system integration flexibility, such as:
- Two available SM option module slots for automation control, I/O, feedback devices and communications
- SMARTCARD for PLC program and parameter storage
- PC tools for easy configuration, monitoring, and diagnostics
Additional features include:
- Patented (pending) galvanic isolation protects control circuits against poor quality industrial power supplies and high voltage circuitry
- Powerful onboard intelligence fine-tunes the drive’s functionality to the application and allows the removal of troublesome analog control circuits
- Communication options include EtherNet/IP, Modbus TCP, PROFIBUS DP, and DeviceNet allowing Quantum MP to be integrated within any automation system
- CTSoft, a windows-based software package, provides an intuitive environment for configuring the drive's functionality
- Quantum MP integrates closely with Control Techniques AC drives using CTNet drive-to-drive communications
Technology for reliability and performance
Quantum MP takes a step forward in performance, robustness and reliability:
- High performance motor control
- Galvanic isolation (patent pending) between power and control protects the control circuits and other equipment connected to the drive from the high voltages on the power circuit. This feature is unique on DC drives
- Protection system against poor industrial power supplies and lightning strikes
- Integrated drive and motor protection
Flexible field control
Internal field controller with intelligent field weakening means that 90 % of applications require no additional external controller
- Integrated field control on frame size 1 to 8 A
- Integrated field control on frame size 2 to 20 A
- Flux control for enhanced open-loop performance
- External FXMP25 field control to 25 A
