Product Description
M600-10601780E10101AN100

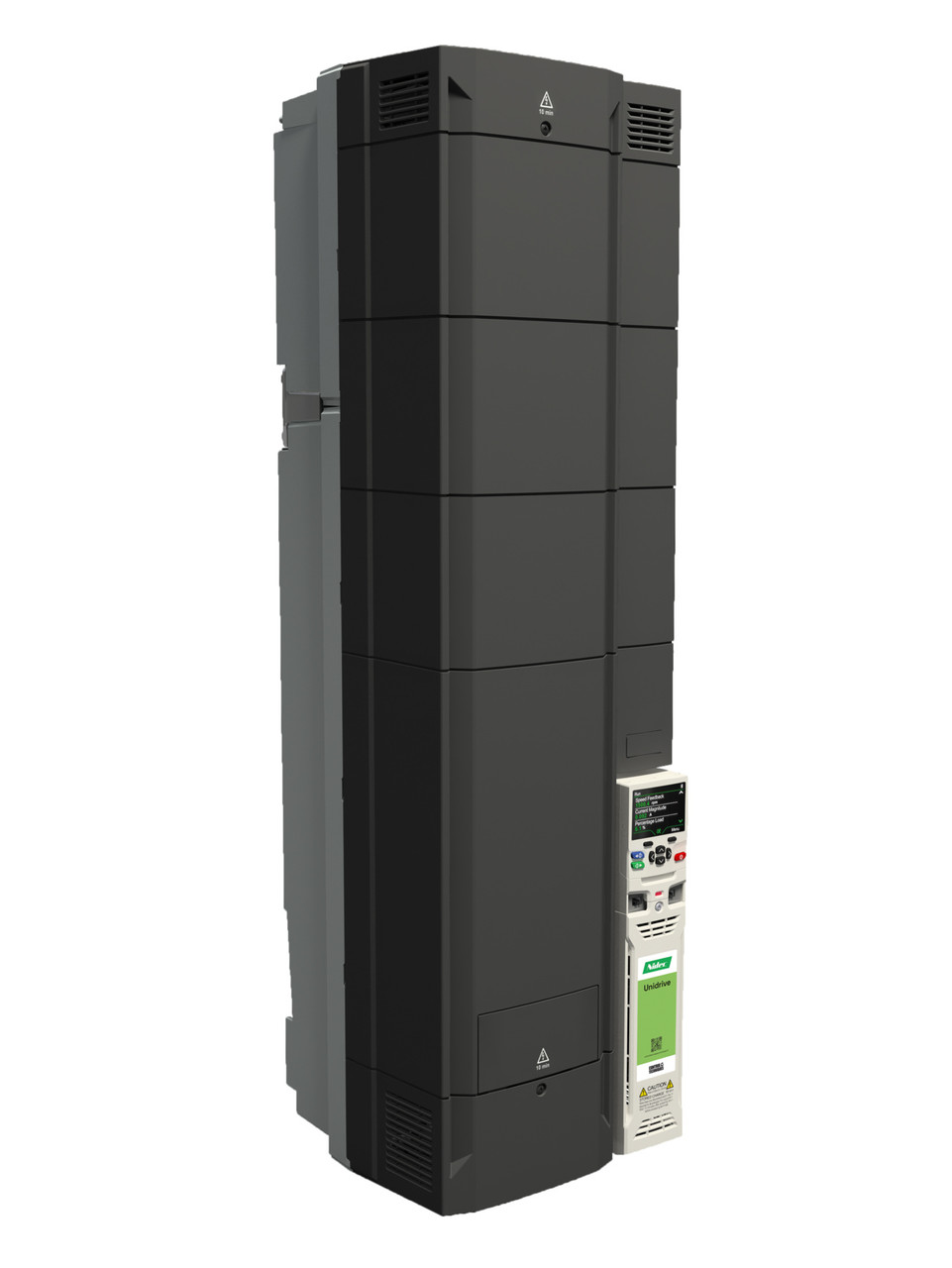

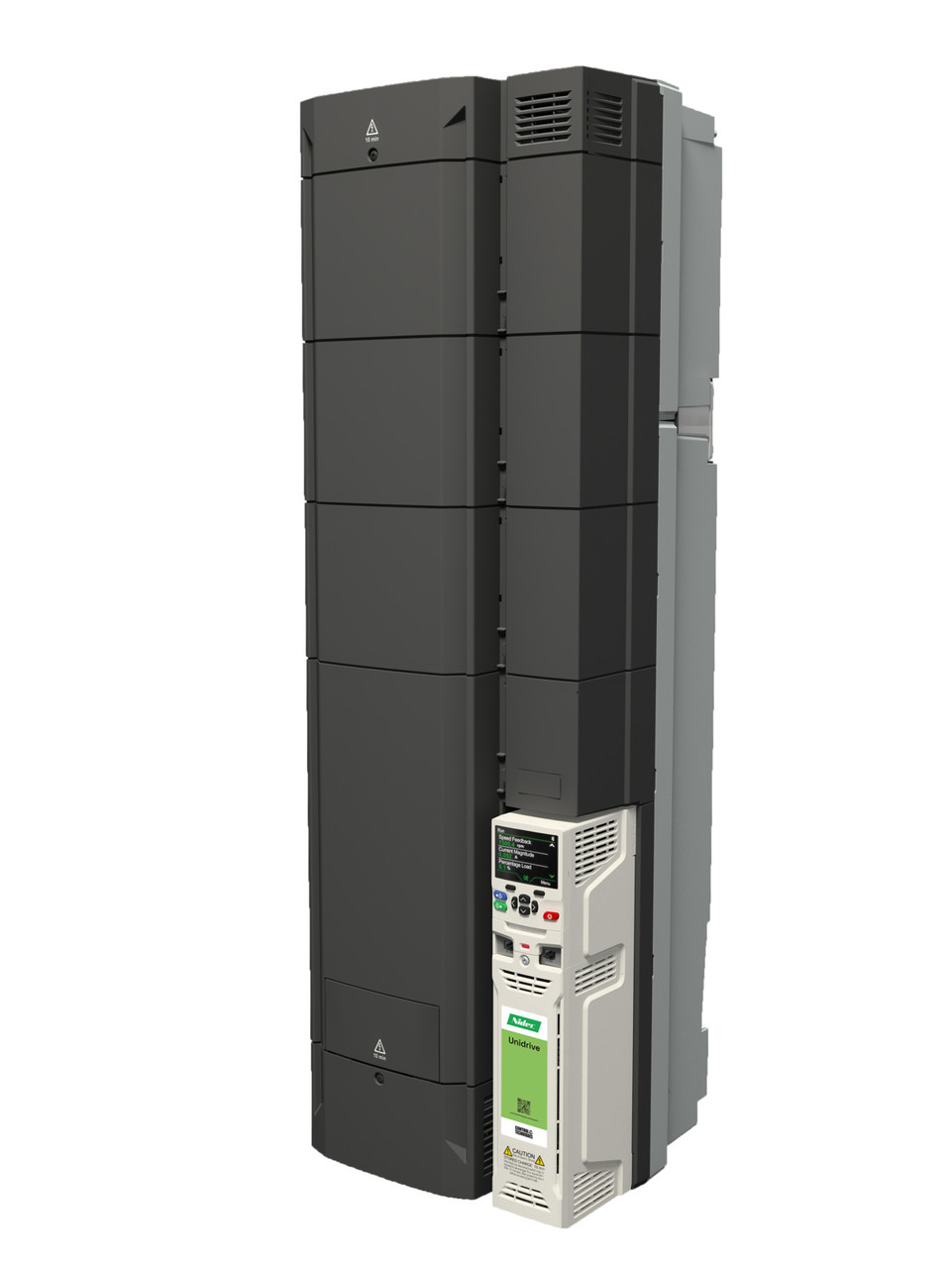

Nidec Control Techniques Unidrive M600
Open/Closed Loop Induction Motor Drive with Open Loop PM Motor Control and Single Safe Torque Off Channel
250HP 197A Normal Duty
200HP 178A Heavy Duty
50/60Hz 690VAC 3 Phase Input and Output
No Dynamic Brake
Requires External AC Line Reactor - LRH0200A
Optional Enhanced Keypad - KI-KEYPAD-LCD or KI-KEYPAD-RTC
Enhanced throughput with high performance open-loop control of induction and permanent magnet motors
- Advanced Rotor Flux Control (RFC) algorithm gives maximum stability and control of induction and permanent magnet motors.
- 200% motor overload suitable for heavy industrial machinery applications.
Reduce system costs by directly integrating with applications
- M600 incorporates an onboard PLC which can execute Machine Control Studio (IEC61131-3) programs for logic control, sequencing, speed following and digital lock - removing the need for additional PLCs.
- Fit up to three SI modules to add safe motion, speed feedback, additional I/O and fieldbus communications.
Other Details
Standard industrial product 2 Year Warranty - Includes exchange or factory repair at our option on lower power products, and on-site repair (parts & on-site time only) on higher power products as defined below. The warranty period starts from the date of shipment from Mechanical Electrical Systems (MES), unless otherwise specified. MES will provide ground shipment to the customer. The customer is responsible for returning the defective product to MES. Products that have not been used in accordance with the product manual, or that have been damaged due to unauthorized repairs will void the product warranty.Product Videos
Custom Field
Horse Power 200HP
Voltage 690VAC
Current 178A
