M400-09402240E10101AB100

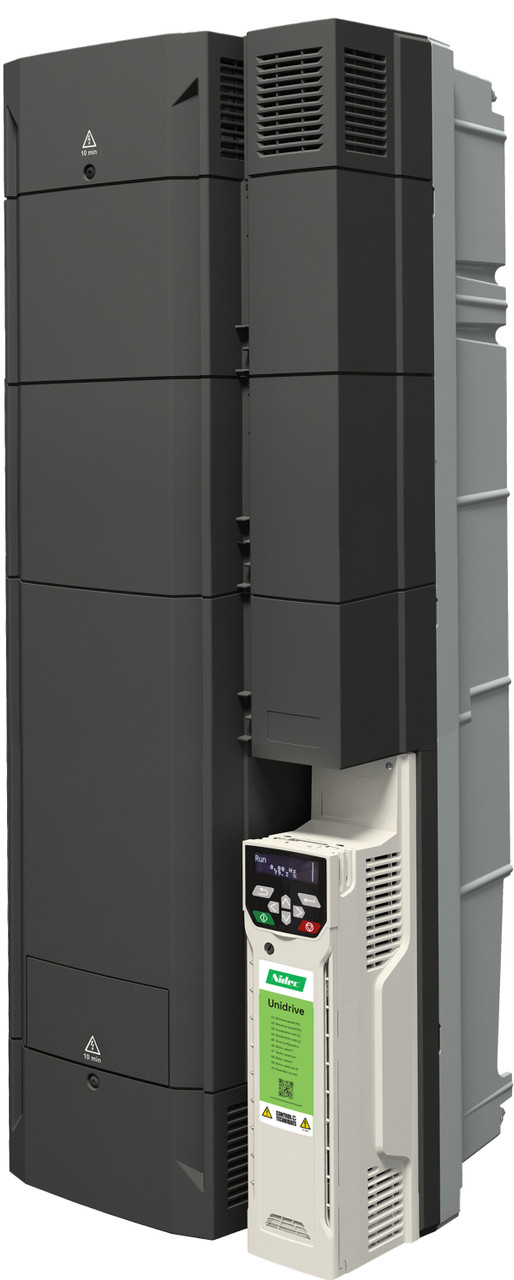

Nidec Control Techniques Unidrive M400
Open Loop Drive with PLC, Optional Enhanced Keypad and Dual Safe Torque Off Channels
200HP 255A Normal Duty 110% Overload
150HP 224A Heavy Duty 150% Overload
50/60Hz 460VAC 3 Phase
Optional Enhanced Keypad - CI-KEYPAD-LCD
Quick setup and diagnostics with real text display, onboard PLC and safety inputs
Control Techniques’ Unidrive M400 variable frequency AC drive (VFD) minimizes downtime with an optional plain-text, multi-language backlit LCD keypad enabling rapid setup and clear diagnostic help.
The integrated PLC can execute a substantial range of sequencing and logic programs. Unidrive M400 has an impressive onboard I/O count, dual Safe Torque Off (STO) inputs, and can accommodate a single SI option module for additional flexibility.
The SI module has options for industry standard fieldbus, Ethernet, and expanded I/O. Additionally, an AI option slot is available for parameter cloning, 24V backup, and Modbus RTU communication options. A CI-485-ADAPTOR is also available to provide additional Modbus RTU communications in place of the optional keypad.
Features
Minimize downtime and system setup time with advanced keypad options
- Informative, multi-language, 3 line display aids setup and provides diagnostic information
- 4 navigation buttons facilitate intuitive navigation and programming
- Keypad options available: No keypad as standard
- CI-Keypad-LCD: Drive mounted LCD plain-text keypad
- Remote-Keypad: IP66 (NEMA 4) rapid panel mount (1 x 32 mm dia hole)
- Remote-Keypad-RTC: IP54 (NEMA 12) panel mounted, LCD plain-text with Real-Time Clock for timestamping diagnostic information
- No keypad (standard): Control/programming performed by PC or communications
Enhance up-time and system flexibility
- Flexible system integration and remote diagnostics through optional industrial Ethernet and fieldbus communications
- Flexible I/O that is expandable with SI-I/O option module
- Unidrive M400 incorporates an onboard PLC which can execute Machine Control Studio programs for logic and sequencing with real-time tasks - removing the need for additional PLC's
Complete IEC 61131-3 programming environment
- Structured text (ST), function block (FBD), sequential function chart (SFC), ladder diagram (LD), instruction list (IL), and continuous function chart (CFC)
Improve throughput with advanced open-loop motor control algorithms
- Rotor Flux Control (RFC-A) provides exceptional induction motor control and high stability for demanding applications
- S-ramp accel / decel profiling provides smooth speed transitions to minimize “jerk”
- 180% motor overload suitable for heavy industrial machinery applications
- Precise frequency following is possible form an encoder or frequency/direction inputs
Conform to safety standards, maximize uptime and reduce costs by integrating directly with safety systems
- Unidrive M400 has integrated dual STO inputs for SIL3 / PLe conformity, eliminating the need for external safety components
