Product Description
M400-06500190A10101AB100

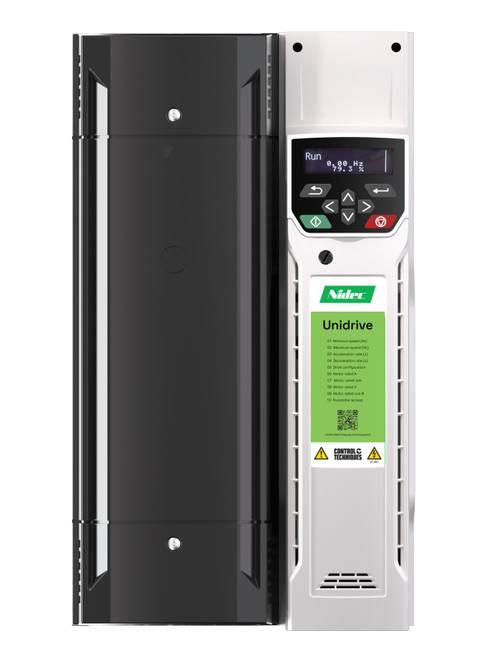

Nidec Control Techniques Unidrive M400
Open Loop AC Drive with PLC, Optional Enhanced Keypad and Dual Safe Torque Off Channels
20HP 22A Normal Duty 110% Overload
15HP 19A Heavy Duty 150% Overload
50/60Hz 575VAC 3 Phase Input and Output
Optional Enhanced Keypad - CI-KEYPAD-LCD
Minimize downtime and system setup time with advanced keypad options
- Informative, multi-language, 3 line display aids setup and provides diagnostic information.
- 4 navigation buttons facilitate intuitive navigation and programming
- Keypad options available:
- CI-Keypad LCD – Drive mounted LCD keypad
- Remote-Keypad – IP66 (NEMA 4) rapid panel mount (1 x 32mm via hole)
- No Keypad (Standard) – Control/programming performed by PC or fieldbus
Reduced system costs by directly integrating with applications
- M400 incorporates an onboard PLC which can execute Machine Control Studio (IEC61131-3) programs for logic and sequencing with real-time tasks - removing the need for additional PLC's
- Fit an SI module to add a fieldbus communications option or additional I/O
Improve throughput with advanced open-loop motor control algorithms
- Rotor Flux Control (RFC-A) gives maximum stability and control of induction motors at all powers
- 180% motor overload suitable for heavy industrial machinery applications
- Precise frequency following is possible form an encoder or frequency/direction inputs
Conform to safety standards, maximize uptime and reduce costs by integrating directly with safety systems
- M400 has integrated dual STO inputs for SIL3 / PLe conformity, eliminating the need for external safety components.
Other Details
Standard industrial product 2 Year Warranty - Includes exchange or factory repair at our option on lower power products, and on-site repair (parts & on-site time only) on higher power products as defined below. The warranty period starts from the date of shipment from Mechanical Electrical Systems (MES), unless otherwise specified. MES will provide ground shipment to the customer. The customer is responsible for returning the defective product to MES. Products that have not been used in accordance with the product manual, or that have been damaged due to unauthorized repairs will void the product warranty.Product Videos
Videos Hide Videos Show Videos
Custom Field
Horse Power 15HP
Voltage 575VAC
Current 19A
