Product Description
M000-10403200DU0100AB100

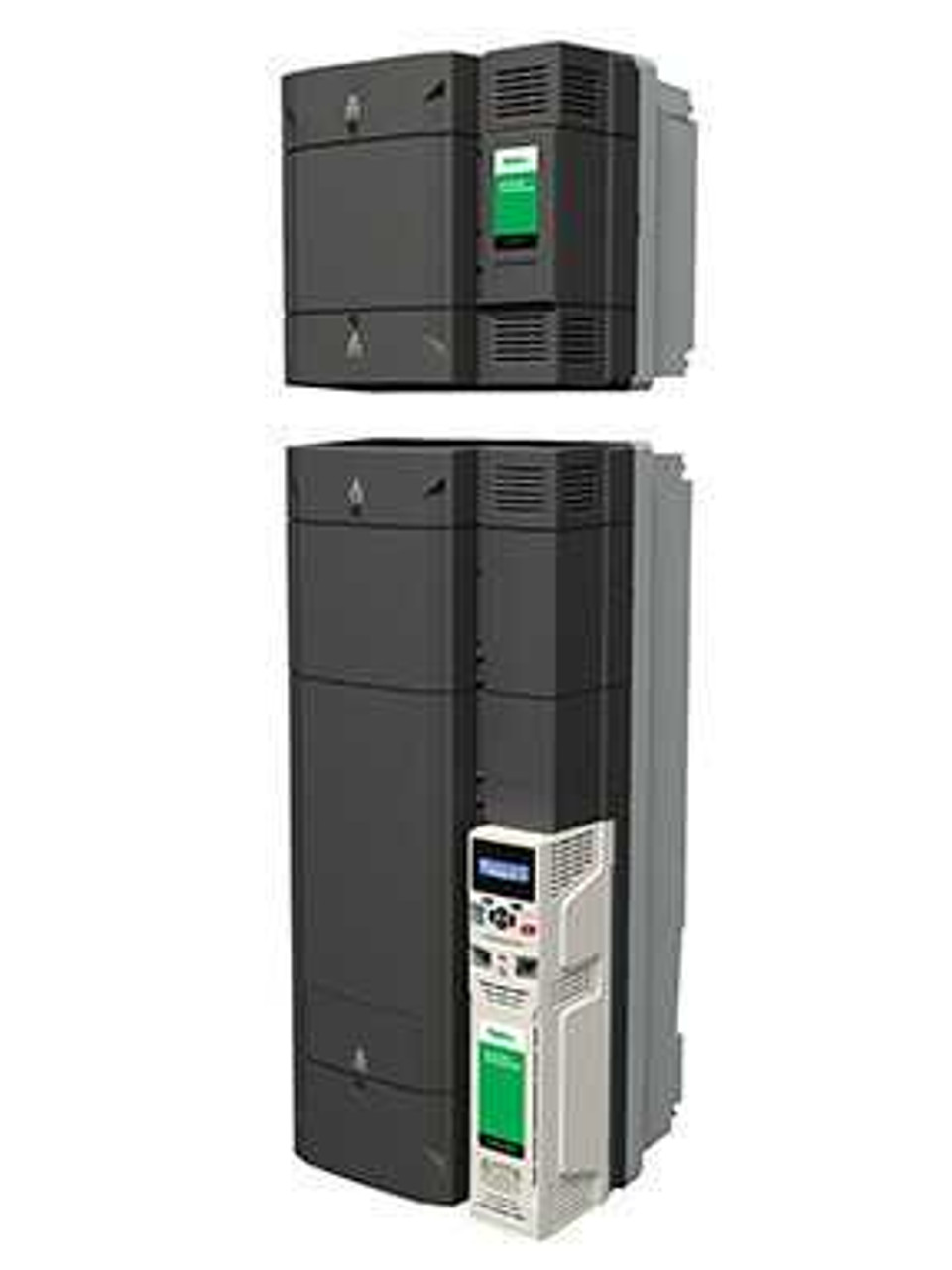

Control Techniques Unidrive Modular AC Drive
Class leading induction and permanent magnet servo motor performance
300HP 361A Normal Duty / 250HP 307A Heavy Duty
DC Input, 460VAC 3 Phase Output
Requires DC Input
High power modular drives
Unidrive M’s modular offering gives you never before seen flexibility in building compact, reliable high-power solutions. Paralleled together, Unidrive M can control asynchronous and synchronous motors up to 2.8 MW (4,200 hp). At the top of the modular drives range, the Frame 12 is a 500 kW (700 hp) single module that delivers unmatched power density, while keeping both footprint and system costs to a minimum. The Unidrive M modules can be paralleled together into a wide range of flexible solutions to solve all system needs, including Active Front End and multi-pulse rectifier configurations.
