KDRMA25L1E01

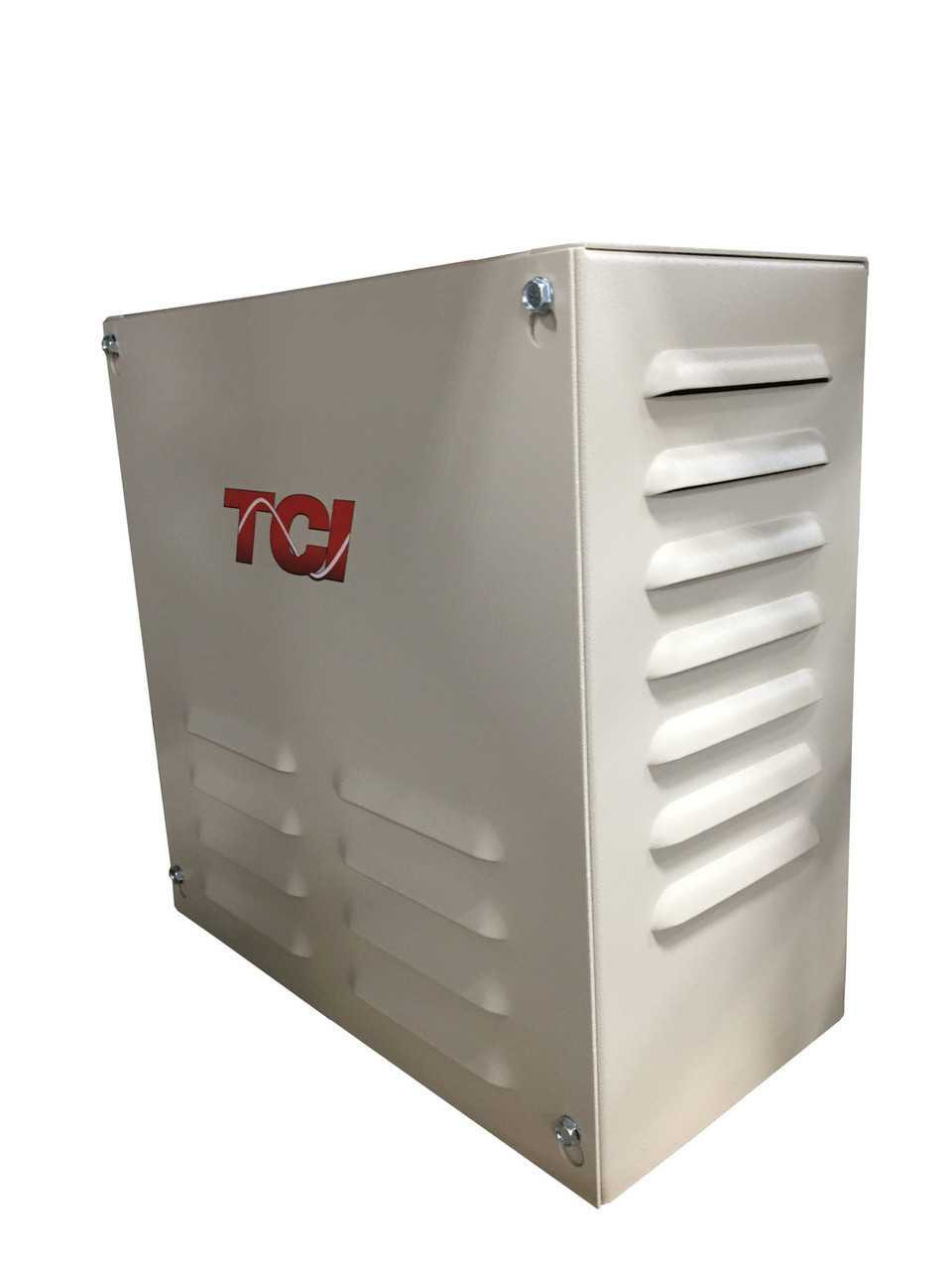

TCI Low Z Line Reactor
208/240 Volt Low Impedance UL Type 1 Enclosed
KDR, 208V, 1 1/2 HP, 6.6 Motor Amps, 7.0 Max Amps, 3 Phase, Type 1, Line Inductor, 3% Impedance. UL Listed.
Specifications
| Rated Voltage | 208/240 |
|---|---|
| Horsepower (HP) | 1.5 |
| Impedance Value | 3% Low Z |
| DIN Rail Option | None |
| UL | UL Listed |
| Enclosure Type | UL Type 1 |
| Watts Loss | 23.3 |
| Phase | 3 |
| Hertz (Hz) | 50/60 |
| Temp Rise | 135 |
| Model | Input Reactor |
| Country of Origin | US |
| Dimensions |
|
| Weight | 11.6 lbs |
