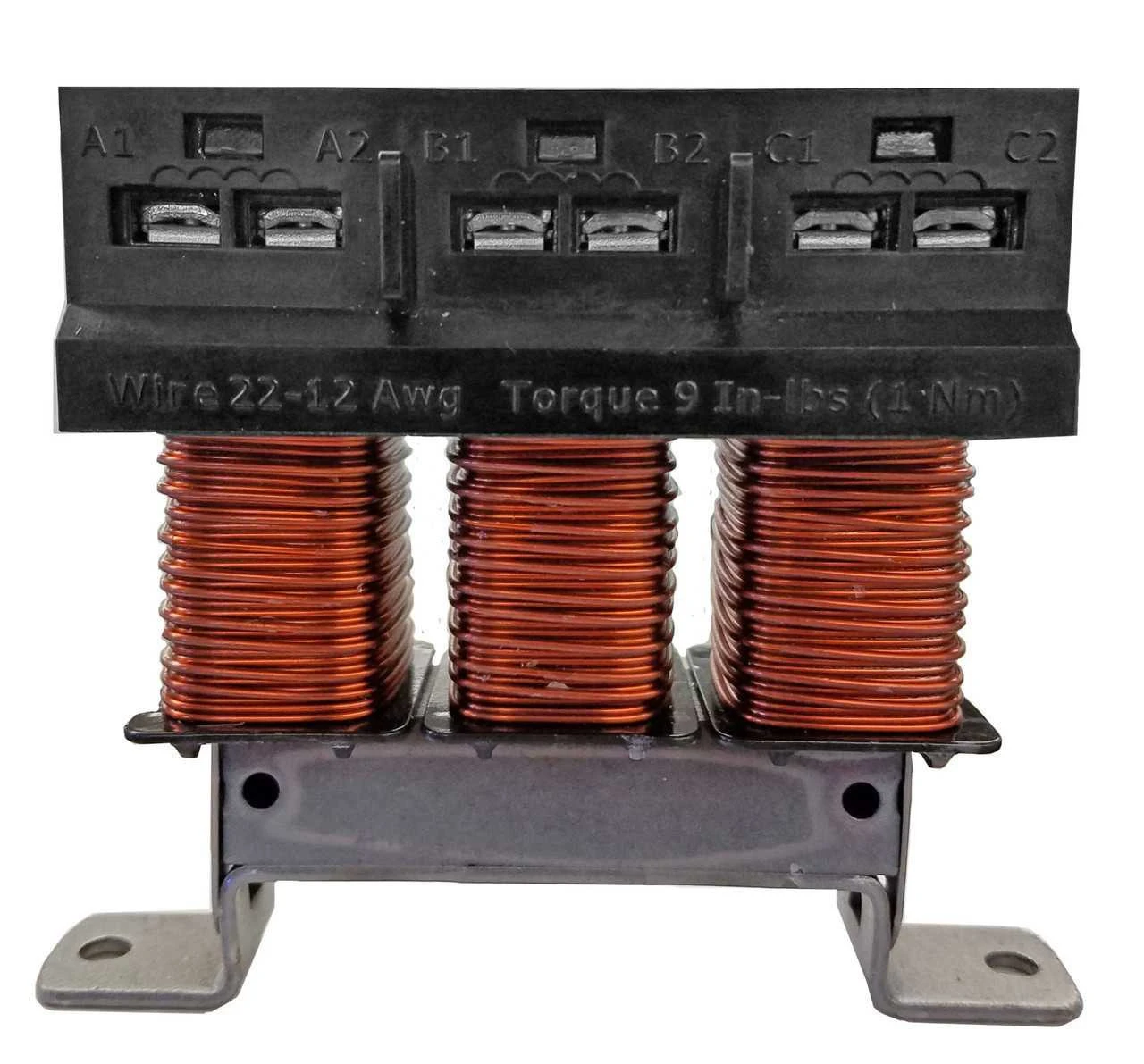

KDRAA28H2
TCI High Z Line Reactor
208/240 Volt High Impedance Open Frame
KDR, 208/240V, 3HP, 10.6 Motor Amps, 11 Max Amps, Narrow Foot, 3 Phase, Open, Line Inductor, 5% Impedance. UL Listed.
Specifications
| Rated Voltage | 208/240 |
|---|---|
| Horsepower (HP) | 3 |
| Impedance Value | 5% High Z |
| DIN Rail Option | None |
| UL | UL Listed |
| Enclosure Type | Open |
| Watts Loss | 44.6 |
| Phase | 3 |
| Hertz (Hz) | 50/60 |
| Temp Rise | 135 |
| Model | Input Reactor |
| Dimensions |
|
| Weight | 2.6 lbs |
