Product Description
C300-08401570A10101AB100

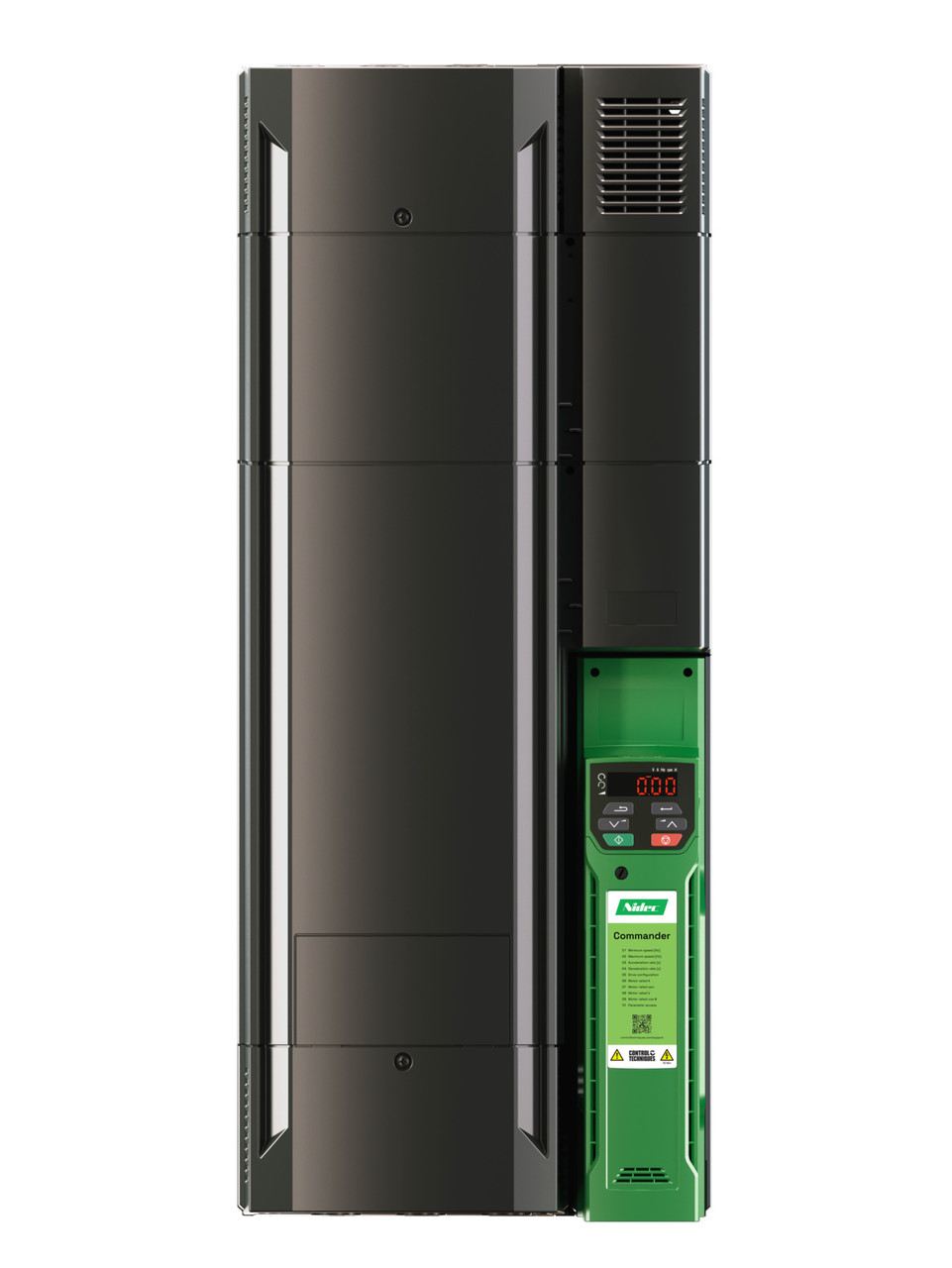

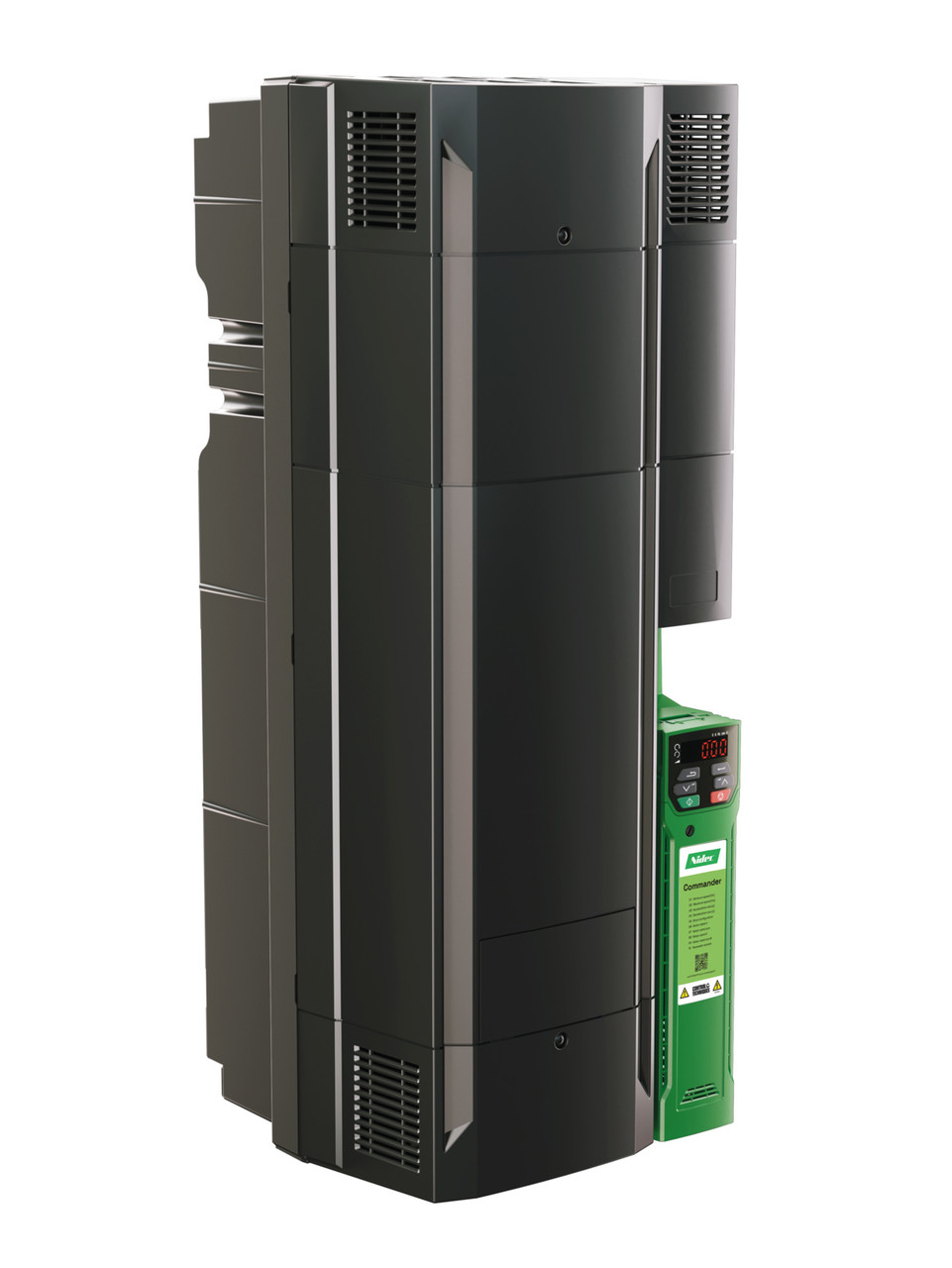

Nidec Control Techniques Commander C300
Open Loop AC Drive with Dual Safe Torque Off Channels
150HP 184A Normal Duty 120% Overload
125HP 157A Heavy Duty 150% Overload
50/60Hz 460VAC 3 Phase Input, 460VAC 3 Phase Output
The Ultimate All-In-One Drive
 Adaptable to your applicationWhether you have a single application or a variety of different ones, Commander C fits right in. With all essential features built-in, it's ready to go right out of the box. |
|
 Integrated functional safetyThe Dual Safe Torque Off (STO) feature, certified to the highest level of machine safety, SIL3/PLe, and compliant to EN/IEC 61800-5-2, prevents the motor from moving unexpectedly, protecting both equipment and operators. |
|
 On-board PLCThe on-board PLC allows for add-on programmable functions, more elaborate I/O features and special software that enables greater machine control. It also eliminates the need for an external controller, saving both on cost and space. |
|
 Compact designCommander C is one of the most compact drives within its category, taking little space in the cabinet and minimizing installation cost. |
|
 Super quick start-upTo get started you only need to set-up 4 parameters (motor rated current, RPM, voltage and power) and for your convenience we've listed them on the front cover of the drive. |
|
 Flexible connectivityThe plug in communication modules enable integration with the most common industrial fieldbuses. |
|
 Worldwide availability and outstanding serviceNeed expert advice and support? Wherever you are in the world we've got you covered via our sales offices or Control Techniques approved distributors. |
|
 Free 5 year warranty*Our Commander C series is built to cope with harsh environments. To share our confidence in the reliability of Commander C we offer an extended 5 year warranty, at no extra cost. It is a testament to our exceptional track record for reliability, giving you total peace of mind that your investment is protected and your site will continue to run uninterrupted. *Warranty terms and conditions apply. |
Whatever your application, Commander C is the perfect solution across industries
The Commander C series are simple and compact AC motor speed controllers that meet advanced requirements in a wide range of applications. Their small footprint – among the smallest in their class – makes them ideal for machine builders and OEMs, where size really matters.
|
|
|
|
|
|
 Lifting, hoisting & winching
|
|
 Access control
|
|
 Processing (mixers, kneaders, crushers, agitators, centrifuges, extruders)
|
Product and Training Videos Series
This product comes with 5-year warranty as standard
No registration. No extra cost. Just peace of mind from day one. Learn more.
Warranty
Standard industrial product 5 Year Warranty - Includes exchange or factory repair at our option on lower power products, and on-site repair (parts & on-site time only) on higher power products as defined below. The warranty period starts from the date of shipment from Mechanical Electrical Systems (MES), unless otherwise specified. MES will provide ground shipment to the customer. The customer is responsible for returning the defective product to MES. Products that have not been used in accordance with the product manual, or that have been damaged due to unauthorized repairs will void the product warranty.Product Videos
Videos Hide Videos Show Videos
Custom Field
Horse Power 125HP
Voltage 460VAC
Current 157A
