Product Description

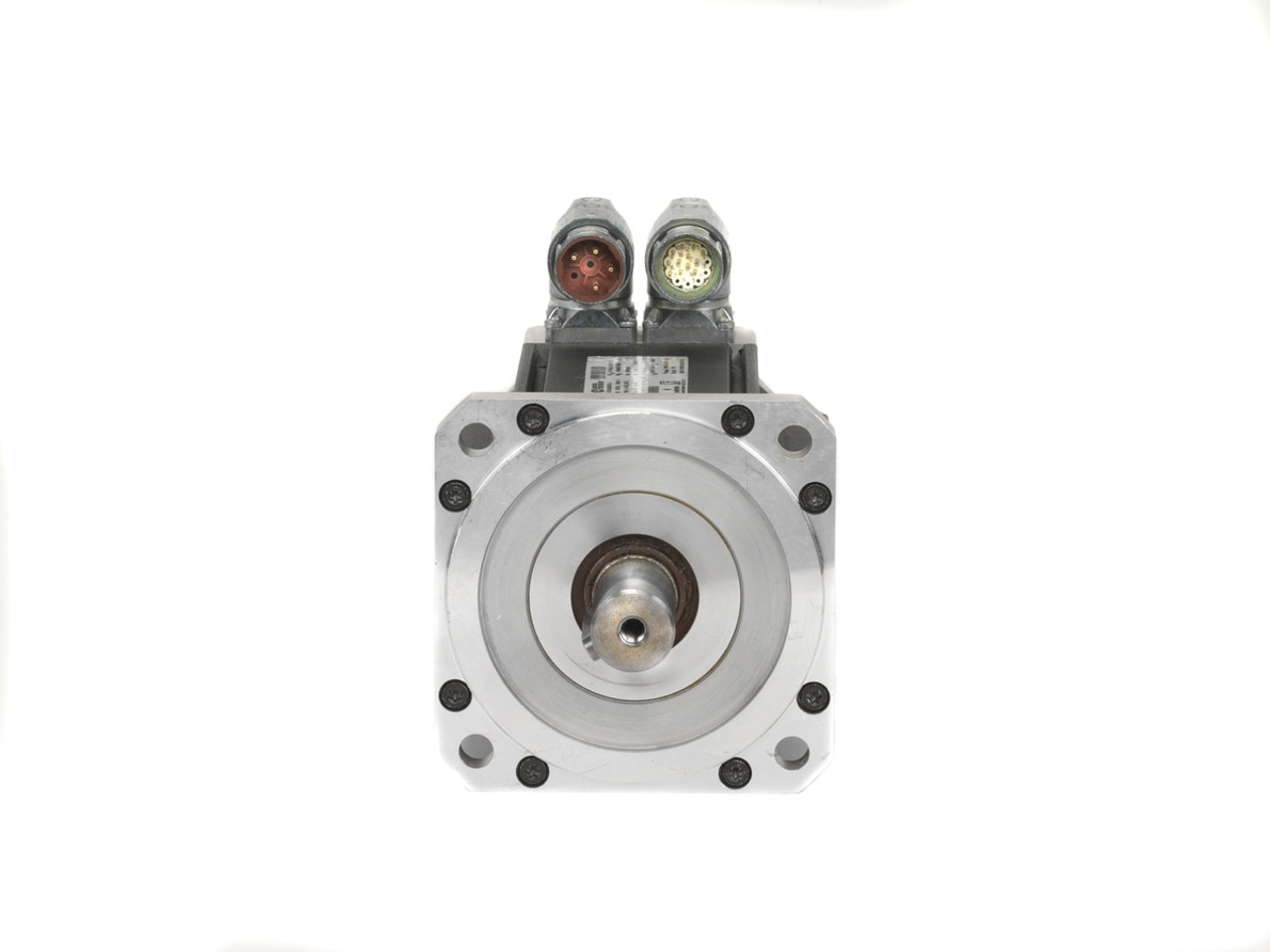

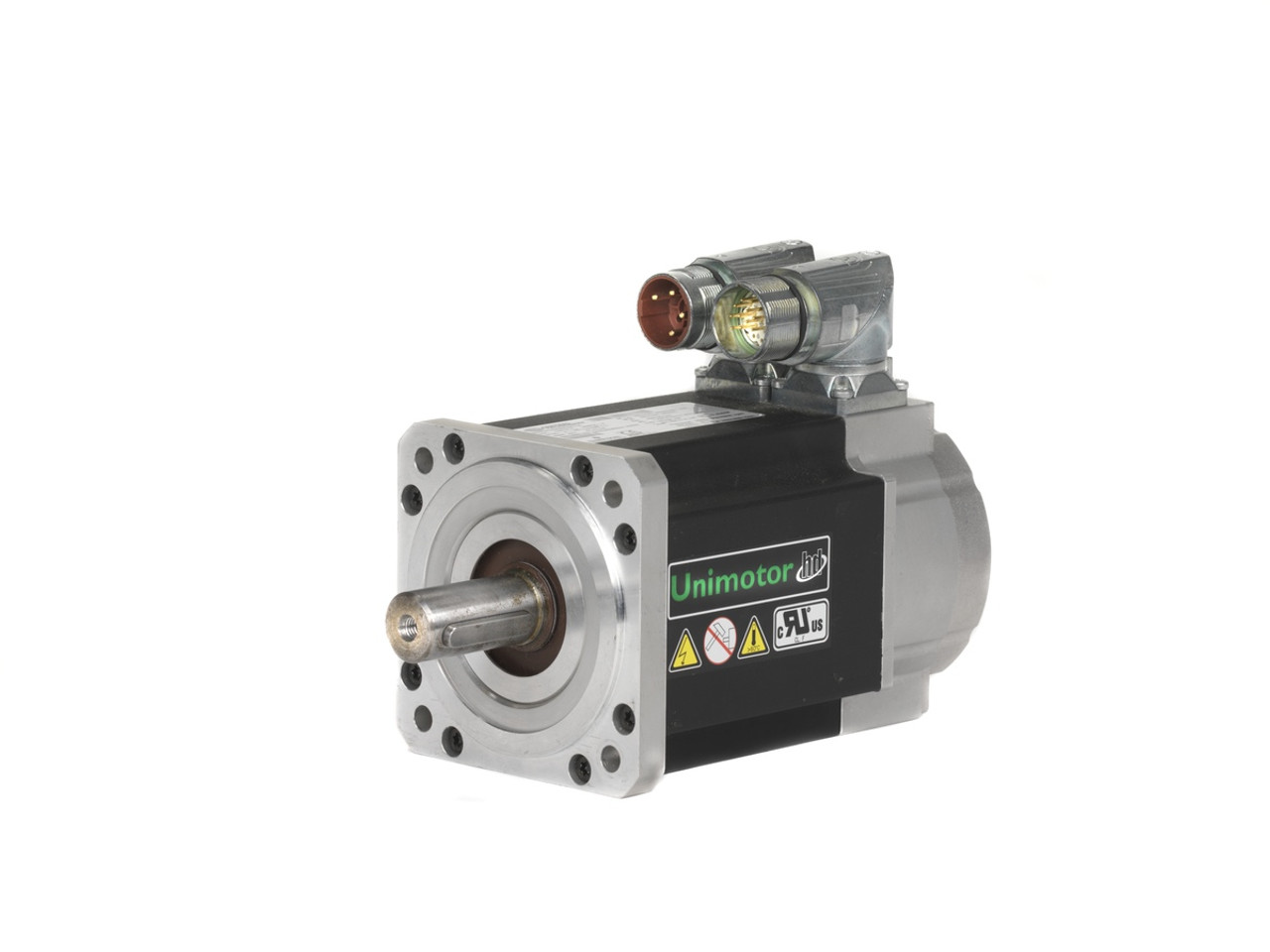

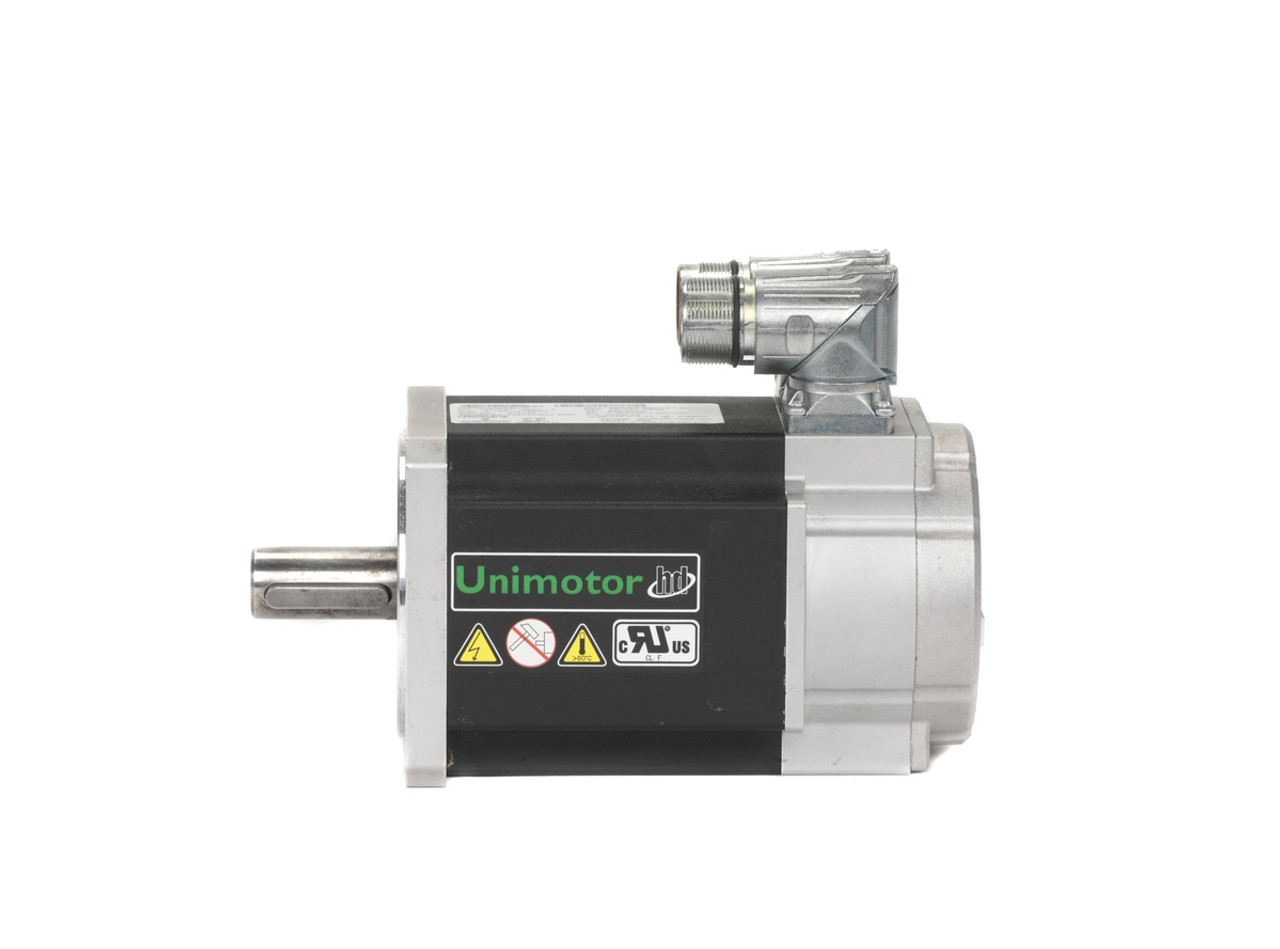

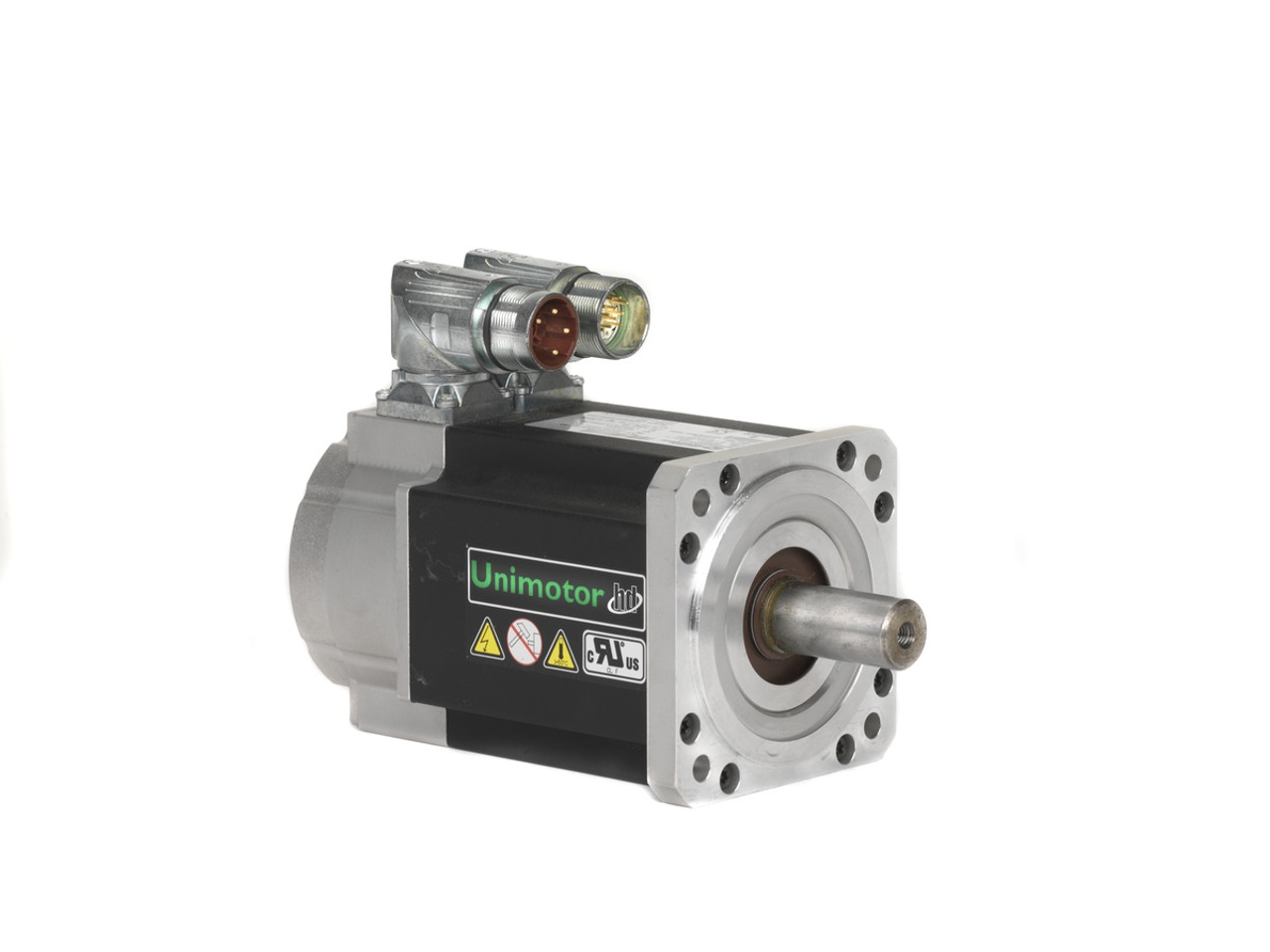

Unimotor HD 089EDB300BACAA
| Stall Torque | Stall Torque | Rated Torque | Rated Torque | Stall Current | Speed | ||
| (LB-IN) | (Nm) | (LB-IN) | (Nm) | (A) | (RPM) | ||
| 48.7 | 5.5 | 42.9 | 4.9 | 5.9 | 3000 |
230V Non-Brake Motor
Incremental Encoder 4096ppr
Unimotor hd
0.72Nm to 85.0Nm (255.0Nm peak)
055 to 190 Frames
Unimotor hd is Control Techniques’ high dynamic brushless AC servo motor range, designed for operation with Unidrive M, Digitax ST servo drives, Unidrive SP and Epsilon EP drives.
Perfectly matched to Digitax HD servo drives
- Flying shear
- Pick and place
- Cut-to-length
Unimotor hd is a high peak torque, low inertia motor range. Designed for high dynamic applications requiring hard accelerations and decelerations including:
Features
Compact servo motor
- Unimotor hd provides an exceptionally compact, low inertia solution for applications where very high torque is required during rapid acceleration and deceleration profiles.
High torque
- The Unimotor hd torque profile is matched to Digitax ST servo drives, providing up to 300% peak overload for maximum dynamic performance.
Specifications
Unimotor is suitable for a wide range of industrial applications, due to its extensive features
- Torque range: 0.72Nm to 85.0Nm (255.0Nm peak)
- High torque to inertia ratio for high dynamic performance
- Compact but powerful
- High energy dissipation brakes
- IP65 conformance: sealed against water spray and dust when mounted and connected
- Segmented stator design
- World class performance
- Supported by rigorous testing for performance and reliability
- Winding to suit 400V and 220V
- Rated speeds include 2000rpm, 3000rpm, 4000rpm and 6000rpm
- Larger shafts to increase torsional rigidity
Conformance and standards
- RoHS Compliant
- CE certified
- Certified BS EN ISO 9001:2000
- Control Techniques two year plus warranty
| FRAME SIZES | 55 | 67 | 89 | 115 | 142 | 190 |
| Rated | 0.72 - 1.65 | 1.45 - 3.70 | 3.20 - 8.00 | 10.20 - 18.80 | 25.0 - 38.0 | 22.0 - 85.0 |
| Peak Torque (Nm) | 2.88 - 6.60 | 4.35 - 11.10 | 9.60 - 24.00 | 30.60 - 56.40 | 74.9 - 114.0 | 156.0 - 255.0 |
Options
Accuracy and resolution
Unimotor hd has a range of feedback options that offer different levels of accuracy and resolution to suit most applications:
- Resolver: robust for extreme applications and conditions - low accuracy, medium resolution
- Incremental encoder: high accuracy, medium resolution
- Inductive Absolute: medium accuracy, medium resolution, single turn and multi-turn
- Optical SinCos/Absolute: high accuracy, high resolution, single turn and multi-turn
- Hiperface (SICK) and EnDAT (Heidenhain) protocols supported
