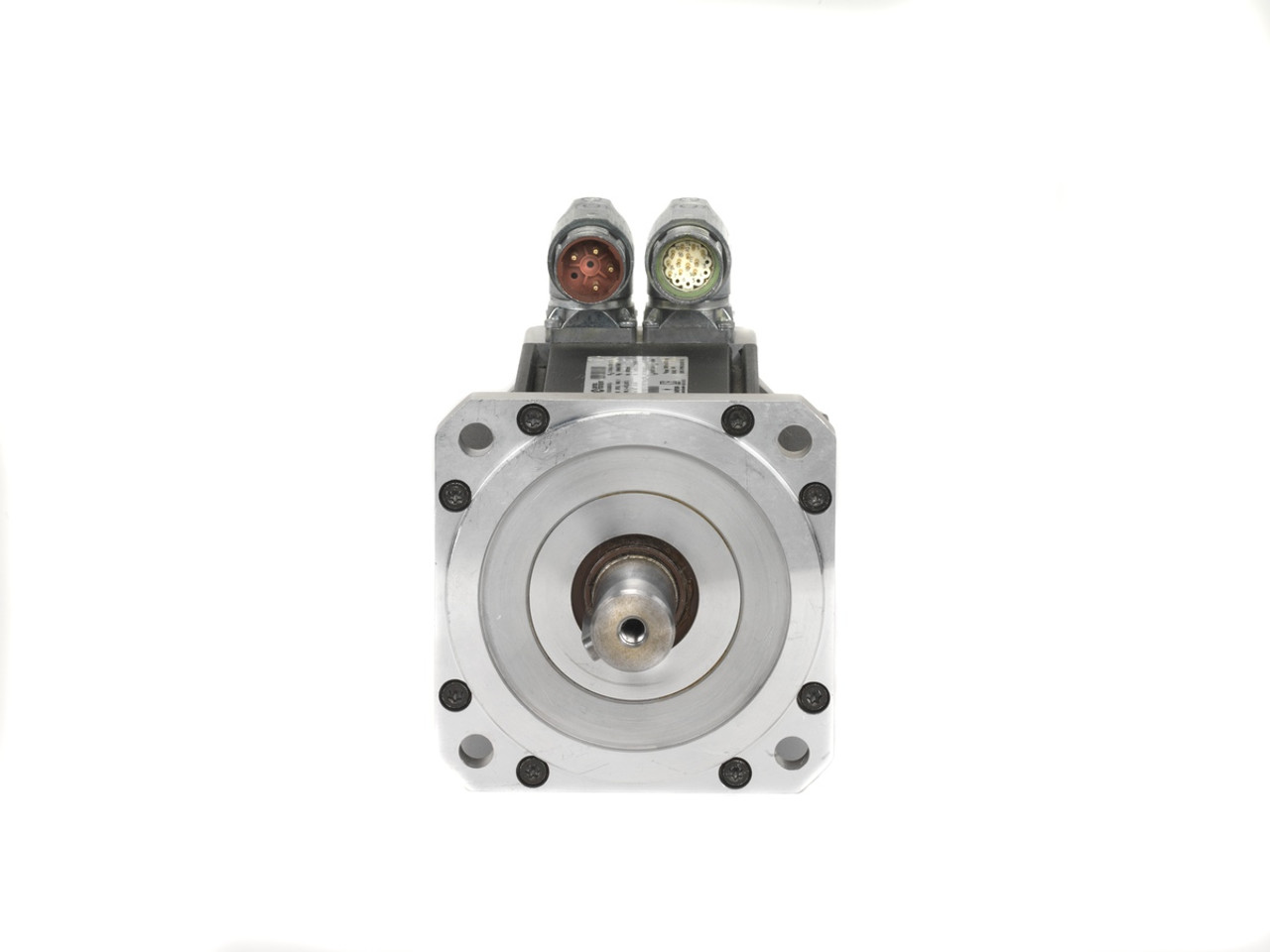

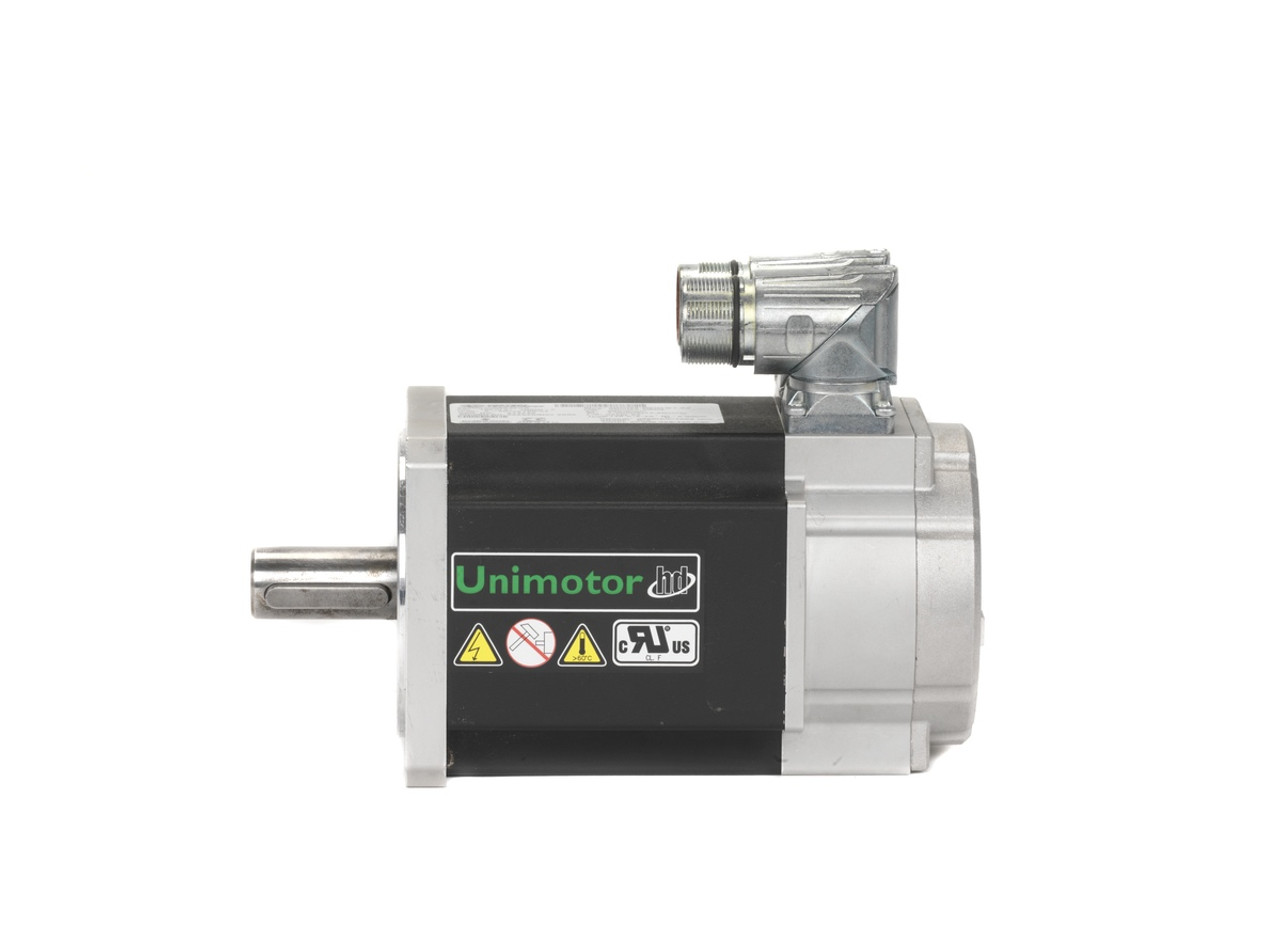

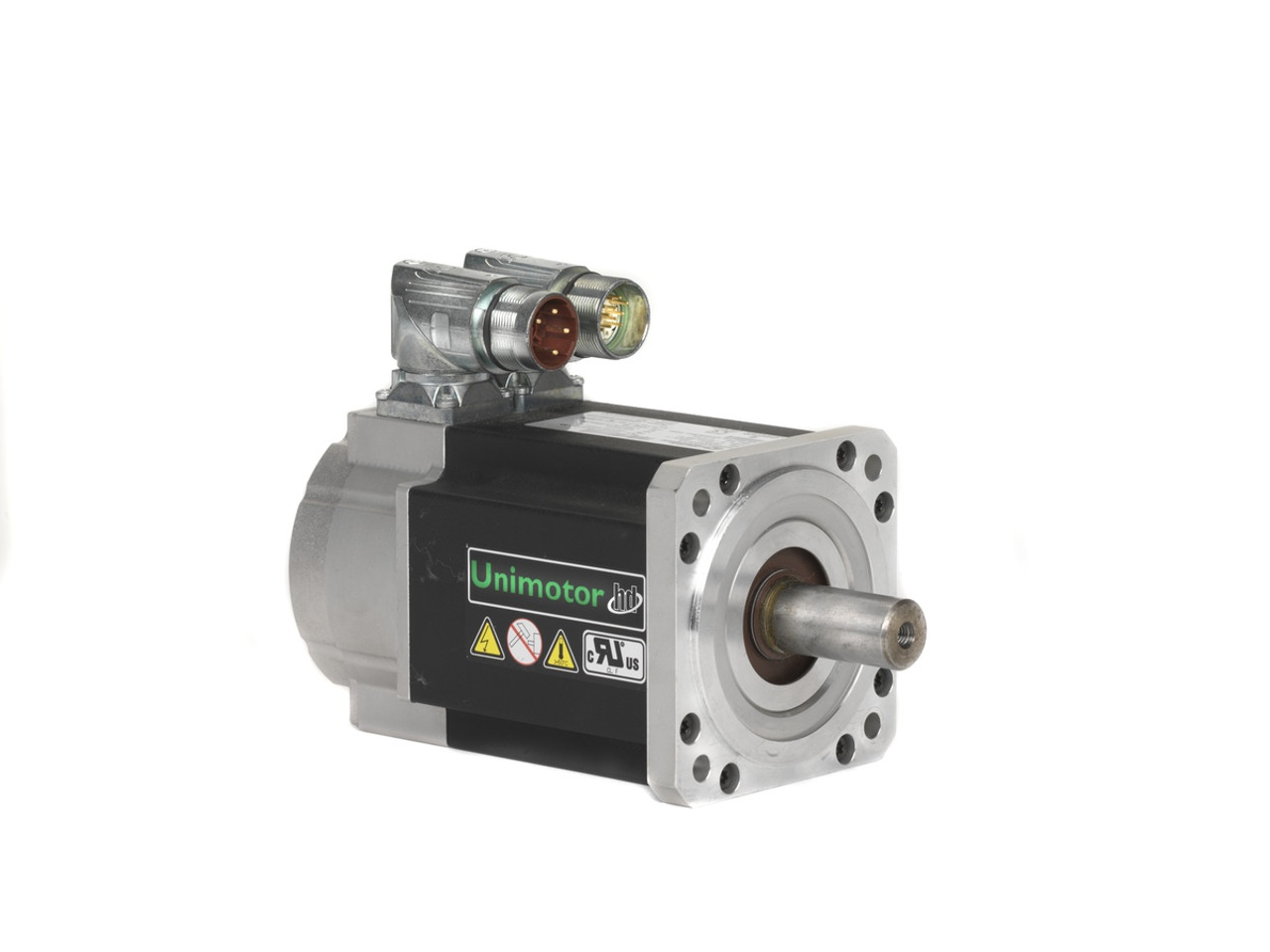

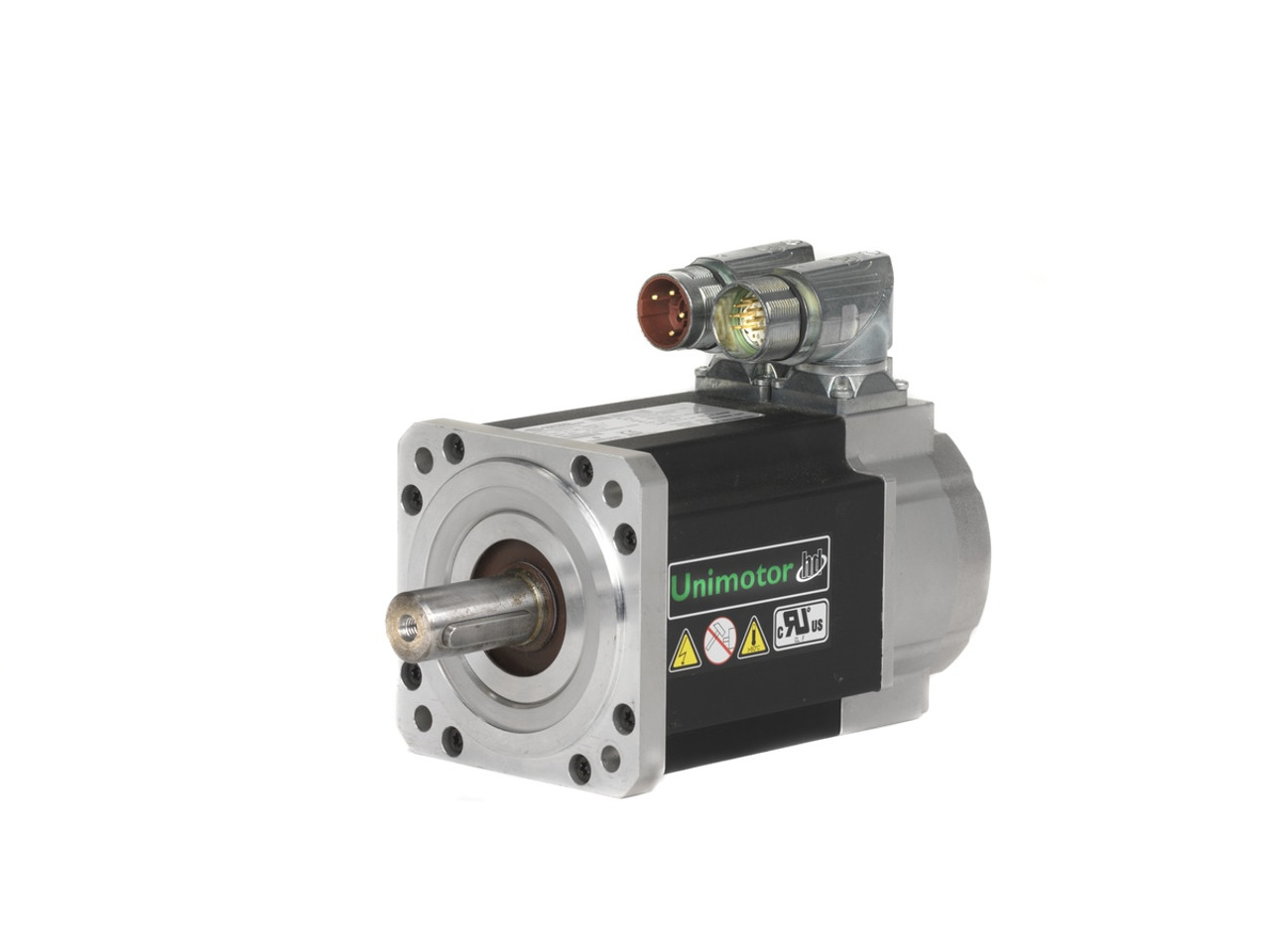

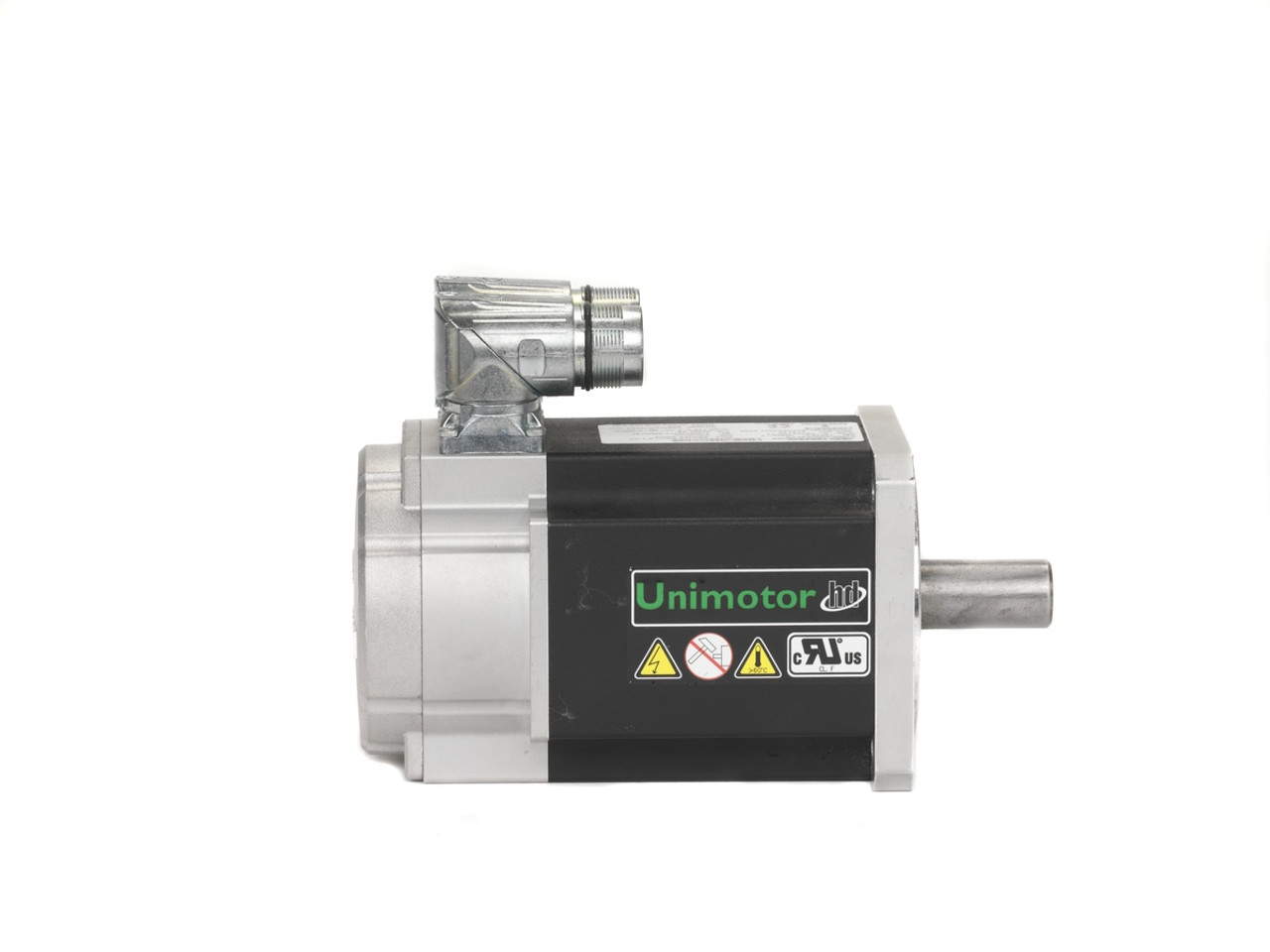

Unimotor HD 089EDC300BACAA
| Stall Torque | Stall Torque | Rated Torque | Rated Torque | Stall Current | Speed | ||
| (LB-IN) | (Nm) | (LB-IN) | (Nm) | (A) | (RPM) | ||
| 70.8 | 8.0 | 61.1 | 6.9 | 8.6 | 3000 |
230V Non-Brake Motor
Incremental Encoder 4096ppr
Unimotor HD
0.72Nm to 85.0Nm (255.0Nm peak)
055 to 190 Frames
Unimotor hd is a high dynamic brushless AC servo motor range with frames from 055 mm to 190 mm, designed for operation with Digitax HD and Unidrive M700 drives.
This high peak torque, low inertia motor range is designed for high dynamic applications requiring hard accelerations and decelerations including:
- Flying shear
- Pick and place
- Cut-to-length
Unimotor HD motors are perfectly matched to Digitax HD Servo Drives.
Features
Compact servo motor
- Unimotor HD provides an exceptionally compact, low inertia solution for applications where very high torque is required during rapid acceleration and deceleration profiles.
High torque
- The Unimotor HD torque profile is matched to Digitax HD Servo Drives, providing up to 300% peak overload for maximum dynamic performance.
Click here for Unimotor HD Brochure
Standard industrial product 2 Year Warranty - Includes exchange or factory repair at our option on lower power products, and on-site repair (parts & on-site time only) on higher power products as defined below. The warranty period starts from the date of shipment from Mechanical Electrical Systems (MES), unless otherwise specified. MES will provide ground shipment to the customer. The customer is responsible for returning the defective product to MES. Products that have not been used in accordance with the product manual, or that have been damaged due to unauthorized repairs will void the product warranty.
